Abwasser
Be- und Entlüftungsventile

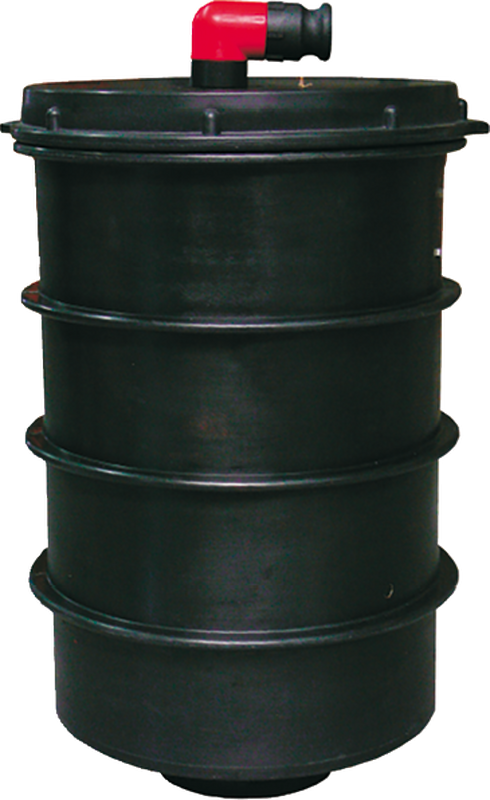

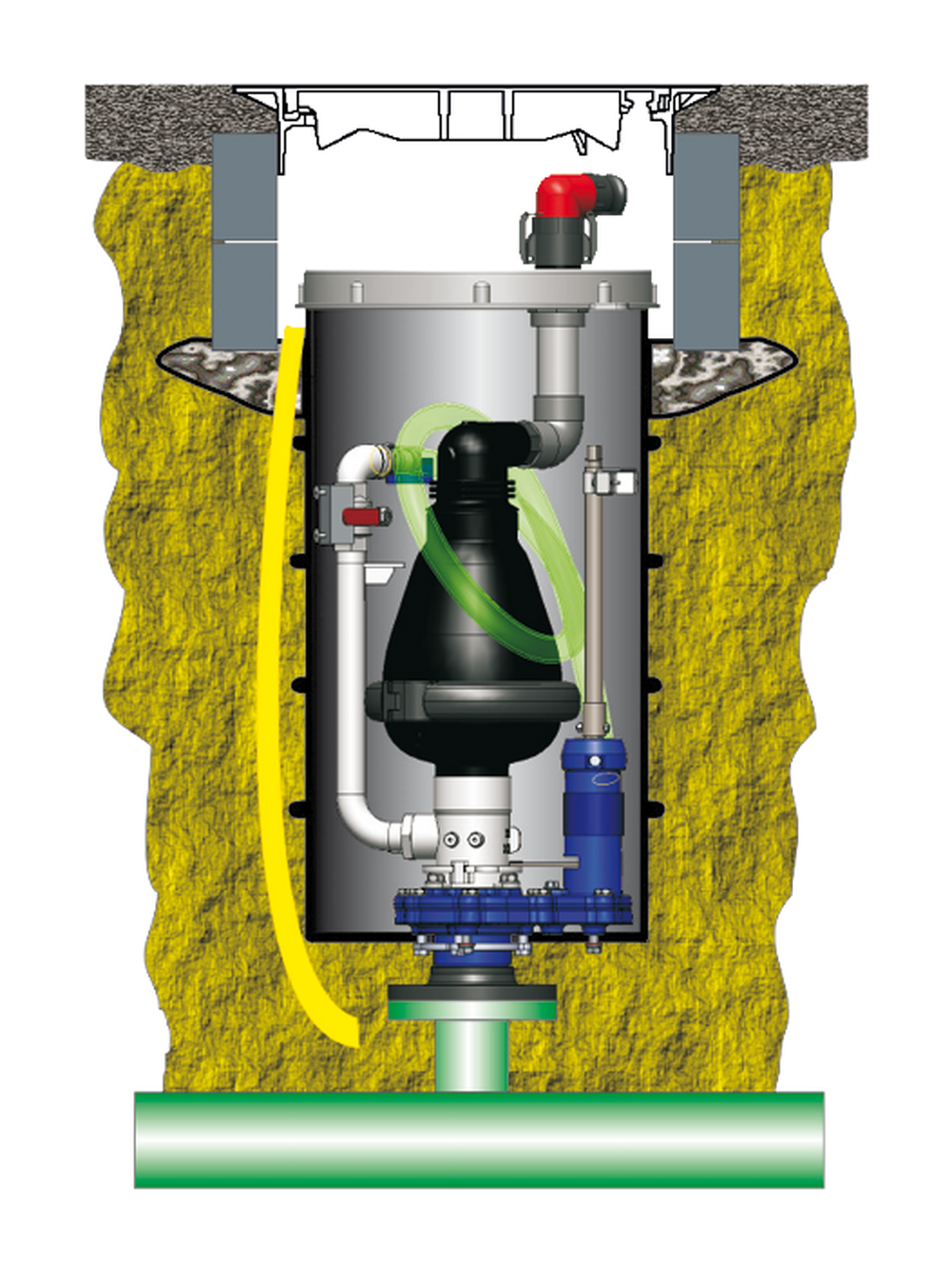

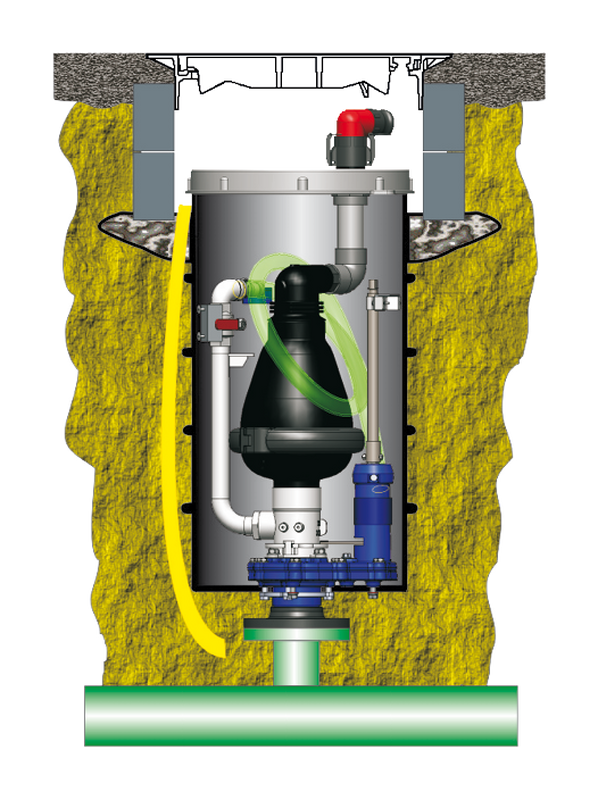

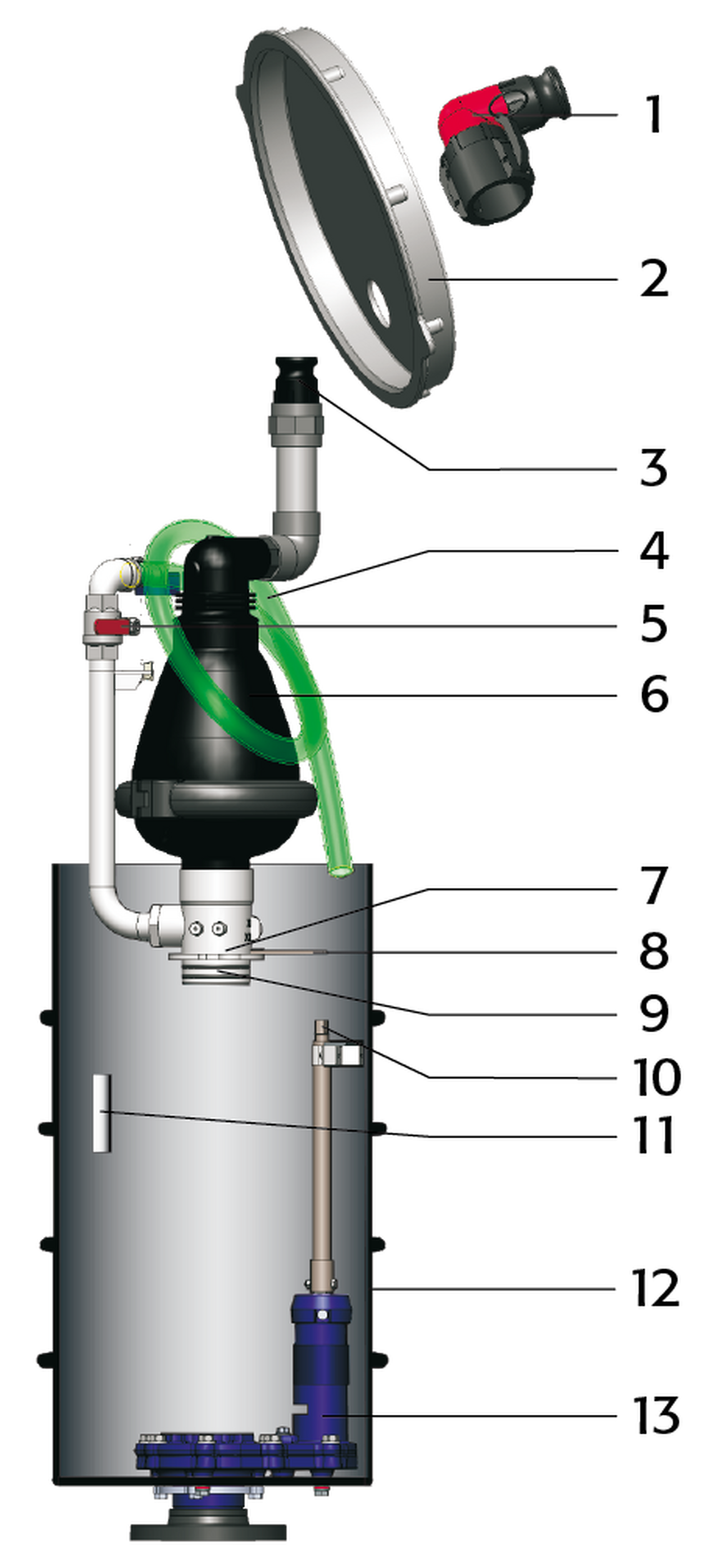

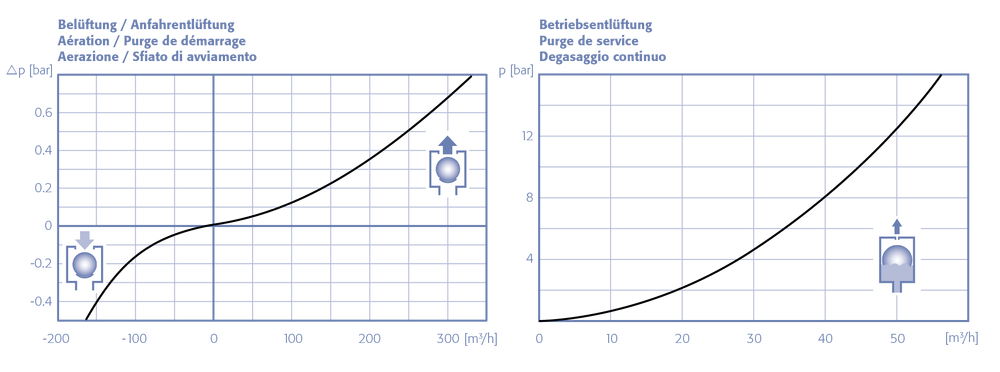

Kompaktschacht für Erdeinbau
Kompaktschacht für Erdeinbau
Typ WABE25E
Artikel-Nr. |
DN |
PN |
H |
∅ di |
kg |
WABE25E50 10 |
50 |
10 |
1010 |
400 |
42.0 |
WABE25E3 10 |
3" |
10 |
1010 |
400 |
42.0 |
WABE25E3 16 |
3" |
16 |
1010 |
400 |
42.0 |
WABE25E80 10 |
80 |
10 |
1010 |
400 |
42.0 |
WABE25E80 16 |
80 |
16 |
1010 |
400 |
42.0 |
WABE25E100 10 |
100 |
10 |
1010 |
400 |
42.0 |
WABE25E100 16 |
100 |
16 |
1010 |
400 |
42.0 |

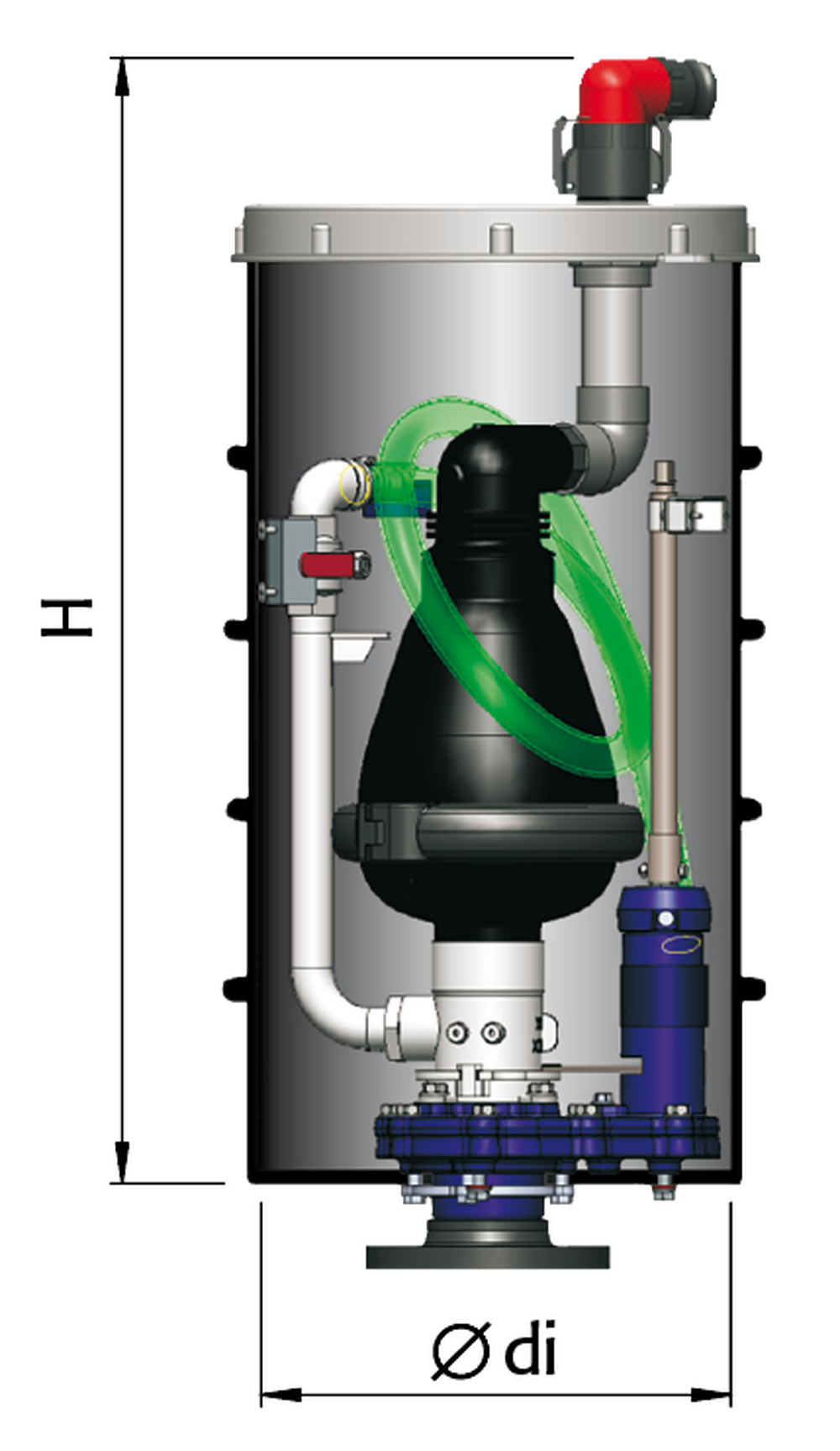

Werkstoffe und Konstruktion
Pos. |
Benennung |
Werkstoffe |
1 |
1.5" Zu-/Abluft-Anschluss |
PPGF |
2 |
Deckel |
PE |
3 |
Abluftleitung |
Kunststoff |
4 |
Ablassschlauch |
PVC |
5 |
Spülrohr mit Kugelhahn |
Edelstahl |
6 |
Be-/Entlüftungsventil WABE25 |
|
7 |
Bajonett-Adapter |
Edelstahl |
8 |
Sicherungsbügel |
Edelstahl |
9 |
O-Ring |
NBR |
10 |
Betätigungsspindel |
Edelstahl |
11 |
Sicherheitsverriegelung |
Edelstahl |
12 |
Schachtmantel |
PE |
13 |
Absperrarmatur mit Umsetzungsgetriebe |
Duktilguss/Edelstahl |
Alle Masse in mm - Änderungen vorbehalten
