Gas

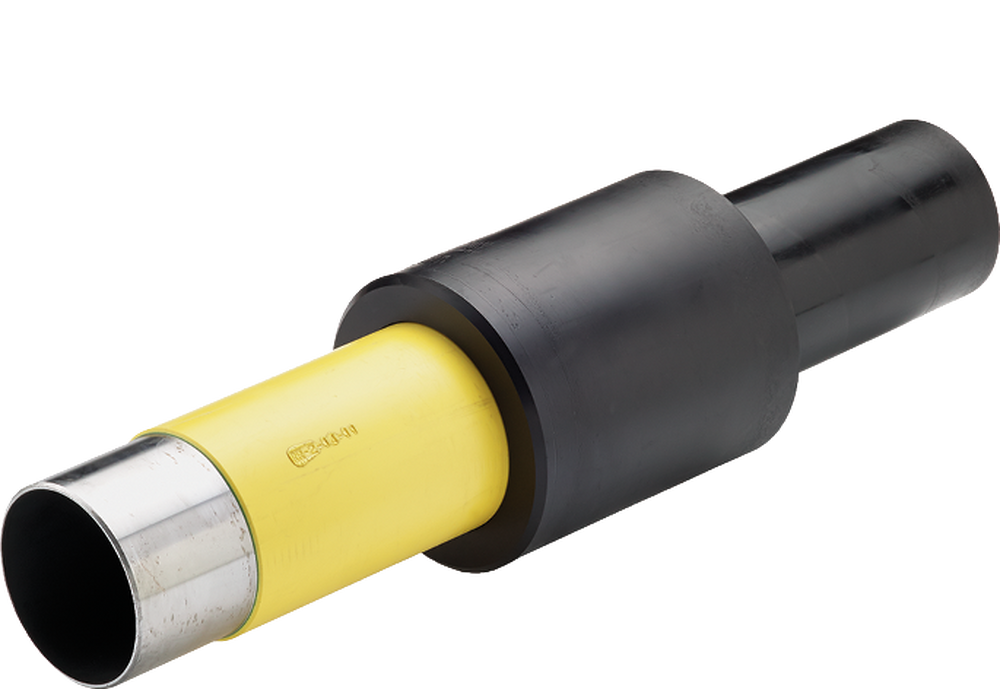

Stahl-Schweissende auf PE S8
Typ SF-ELPE S8
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
DN |
d |
s |
E |
L |
L1 |
L2 |
kg |
|
SF-ELPE1-32S8 |
1" |
25 |
32 |
1.9 |
63 |
500 |
215 |
140 |
1.3 |
|
SF-ELPE1 1/4-40S8 |
1¼" |
32 |
40 |
2.4 |
75 |
500 |
215 |
140 |
1.6 |
|
SF-ELPE1 1/2-50S8 |
1½" |
40 |
50 |
3.0 |
75 |
500 |
215 |
140 |
1.8 |
|
SF-ELPE2-63S8 |
2" |
50 |
63 |
3.8 |
75 |
500 |
225 |
150 |
2.5 |
|
SF-ELPE3-90S8 |
3" |
80 |
90 |
5.4 |
135 |
610 |
350 |
150 |
5.0 |
|
SF-ELPE4-110S8 |
4" |
100 |
110 |
6.6 |
170 |
640 |
390 |
170 |
7.4 |
|
SF-ELPE4-125S8 |
4" |
100 |
125 |
7.4 |
170 |
650 |
425 |
160 |
7.6 |
|
SF-ELPE6-160S8 |
6" |
150 |
160 |
9.5 |
240 |
745 |
450 |
210 |
14.2 |
|
SF-ELPE6-180S8 |
6" |
150 |
180 |
10.7 |
240 |
745 |
480 |
190 |
14.4 |
|
SF-ELPE8-200S8 |
8" |
200 |
200 |
11.9 |
300 |
780 |
500 |
177 |
23.6 |
|
SF-ELPE8-225S8 |
8" |
200 |
225 |
13.4 |
300 |
780 |
515 |
250 |
23.6 |
|
SF-ELPE8-250S8 |
8" |
200 |
250 |
14.8 |
300 |
780 |
515 |
250 |
31.6 |
|
SF-ELPE10-280S8 |
10" |
250 |
280 |
16.6 |
380 |
810 |
520 |
175 |
32.0 |
|
SF-ELPE10-315S8 |
10" |
250 |
315 |
18.7 |
380 |
810 |
570 |
175 |
48.0 |
|
SF-ELPE12-315S8 |
12" |
300 |
315 |
18.7 |
430 |
860 |
570 |
175 |
58.0 |
|
SF-ELPE12-355S8 |
12" |
300 |
355 |
21.1 |
510 |
860 |
570 |
175 |
62.0 |
|
SF-ELPE16-400S8 |
16" |
400 |
400 |
23.7 |
520 |
800 |
565 |
180 |
100.0 |
|
SF-ELPE16-450S8 |
16" |
400 |
450 |
26.7 |
520 |
800 |
565 |
140 |
102.0 |
Alle Masse in mm - Änderungen vorbehalten
