Wasser

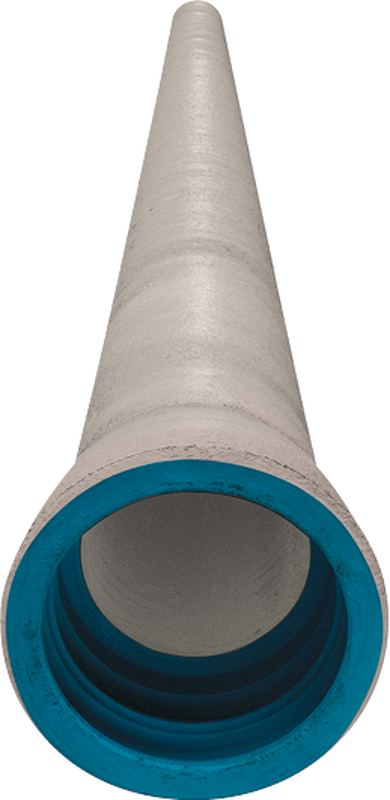

Steckmuffen-Rohr
ZMU-Umhüllung
ZMU-Umhüllung
UNIVERSAL Novo-Sit
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|

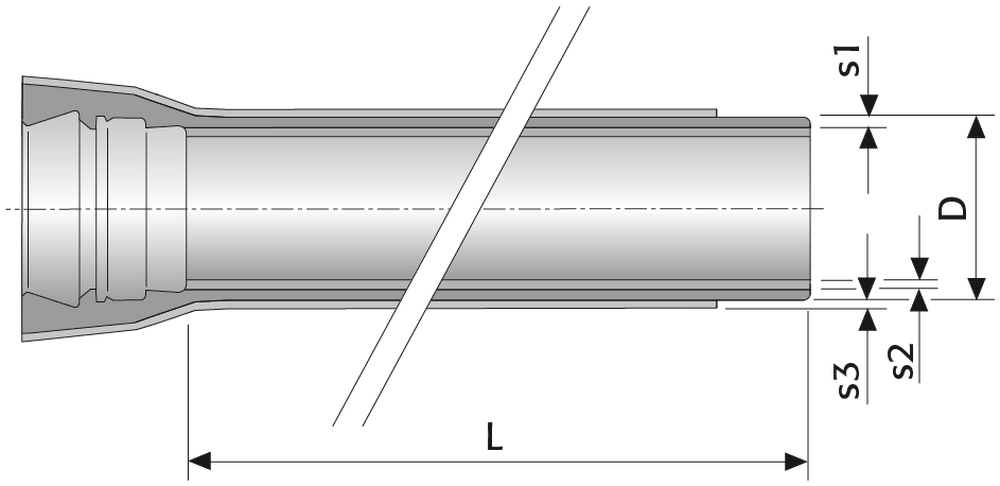

Artikel-Nr. |
DN |
*Klasse |
D |
s1 |
s2 |
s3 |
L |
kg/m |
Dichtring |
Gebinde |
NPK-Nr. |
|
HOZ ZMU80C100N |
80 |
C100 |
98 |
6.1 |
4 |
5 |
5970 |
19.1 |
TYTON |
15 |
213.411 |
|
HOZ ZMU100C100N |
100 |
C100 |
118 |
6.1 |
4 |
5 |
5970 |
23.3 |
TYTON |
10 |
213.412 |
|
HOZ ZMU125C64N |
125 |
C64 |
144 |
6.1 |
4 |
5 |
5970 |
28.6 |
TYTON |
8 |
213.413 |
|
HOZ ZMU150C64N |
150 |
C64 |
170 |
6.2 |
4 |
5 |
5970 |
34.4 |
TYTON |
8 |
213.414 |
|
HOZ ZMU200C64N |
200 |
C64 |
222 |
6.5 |
4 |
5 |
5970 |
47.0 |
TYTON |
6 |
213.415 |
|
HOZ ZMU250C50N |
250 |
C50 |
274 |
6.8 |
4 |
5 |
5970 |
60.9 |
TYTON |
4 |
213.416 |
|
HOZ ZMU300C50N |
300 |
C50 |
326 |
7.4 |
4 |
5 |
5970 |
77.6 |
TYTON |
4 |
213.417 |
|
HOZ ZMU350C40N |
350 |
C40 |
378 |
7.7 |
5 |
5 |
5970 |
95.3 |
STANDARD |
4 |
- |
|
HOZ ZMU400C40N |
400 |
C40 |
429 |
8.1 |
5 |
5 |
5970 |
111.6 |
STANDARD |
1 |
213.418 |
|
HOZ ZMU500C40N |
500 |
C40 |
532 |
9.3 |
5 |
5 |
5970 |
155.8 |
STANDARD |
1 |
- |
|
HOZ ZMU600C40N |
600 |
C40 |
635 |
10.9 |
5 |
5 |
5970 |
208.1 |
STANDARD |
1 |
- |
|
HOZ ZMU700C30N |
700 |
C30 |
738 |
10.8 |
6 |
5 |
6900 |
248.6 |
STANDARD |
1 |
- |
|
*Zulässiger PFA in bar |
|||||||||||
Alle Masse in mm - Änderungen vorbehalten
