Wasser
Verstellbereich +/- 10 mm

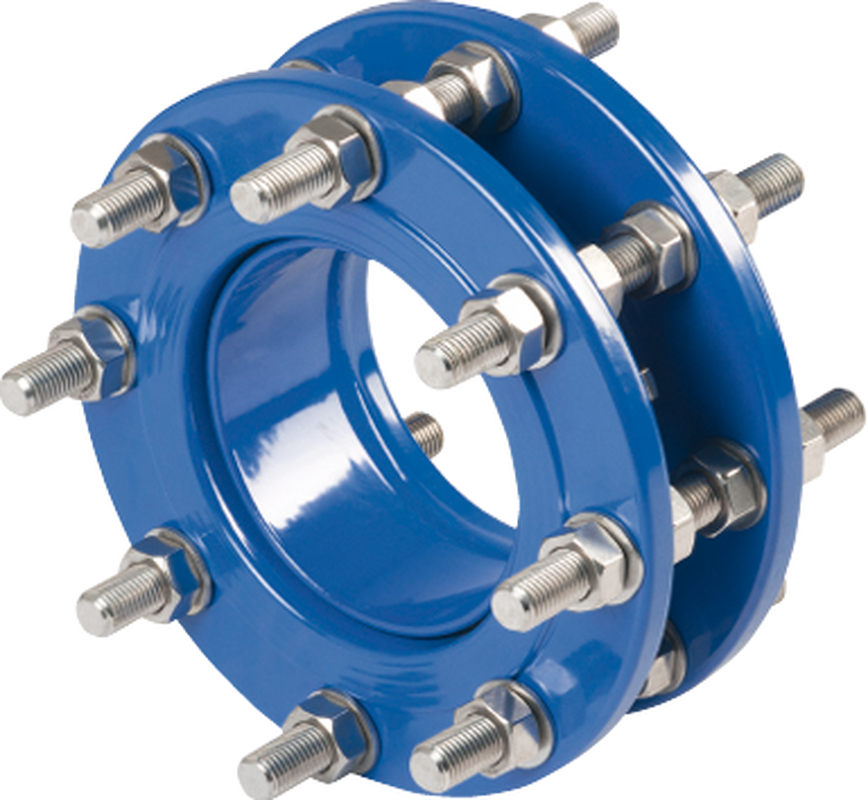

Typ POK
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
L |
A |
K |
D |
Gewindeanker |
kg |
NPK-Nr. |
|||||
|
V |
A2 |
|||||||||||||
|
V |
A2 |
DS (2D) | SA (2D) | VA (2D) | ||||||||||
|
POK50 |
POK50A2 |
50 |
10/16 |
100 |
200 |
125 |
165 |
4 |
8.0 |
- |
- |
|
|
|
|
POK65 |
POK65A2 |
65 |
10/16 |
100 |
200 |
145 |
185 |
4 |
9.0 |
- |
- |
|
|
|
|
POK80 |
POK80A2 |
80 |
10/16 |
100 |
210 |
160 |
200 |
8 |
12.0 |
- |
- |
|
|
|
|
POK100 |
POK100A2 |
100 |
10/16 |
100 |
210 |
180 |
220 |
8 |
13.0 |
- |
- |
|
|
|
|
POK125 |
POK125A2 |
125 |
10/16 |
100 |
210 |
210 |
250 |
8 |
16.0 |
- |
- |
|
|
|
|
POK150 |
POK150A2 |
150 |
10/16 |
100 |
230 |
240 |
285 |
8 |
21.0 |
- |
- |
|
|
|
|
POK200 10 |
POK200 10A2 |
200 |
10 |
100 |
230 |
295 |
340 |
8 |
28.0 |
- |
- |
|
|
|
|
POK200 16 |
POK200 16A2 |
200 |
16 |
100 |
230 |
295 |
340 |
12 |
31.0 |
- |
- |
|
|
|
|
POK250 10 |
POK250 10A2 |
250 |
10 |
110 |
240 |
350 |
395 |
12 |
39.0 |
- |
- |
|
|
|
|
POK250 16 |
POK250 16A2 |
250 |
16 |
120 |
260 |
355 |
405 |
12 |
49.0 |
- |
- |
|
|
|
|
POK300 10 |
POK300 10A2 |
300 |
10 |
110 |
240 |
400 |
445 |
12 |
45.0 |
- |
- |
|
|
|
|
POK300 16 |
POK300 16A2 |
300 |
16 |
130 |
270 |
410 |
460 |
12 |
59.0 |
- |
- |
|
|
|
|
POK350 10 |
POK350 10A2 |
350 |
10 |
110 |
240 |
460 |
505 |
16 |
59.0 |
- |
- |
|
|
|
|
POK350 16 |
POK350 16A2 |
350 |
16 |
130 |
270 |
470 |
520 |
16 |
81.0 |
- |
- |
|
|
|
|
POK400 10 |
POK400 10A2 |
400 |
10 |
110 |
260 |
515 |
565 |
16 |
74.0 |
- |
- |
|||
|
POK400 16 |
POK400 16A2 |
400 |
16 |
140 |
295 |
525 |
580 |
16 |
102.0 |
- |
- |
|||
|
POK500 10 |
POK500 10A2 |
500 |
10 |
110 |
260 |
620 |
670 |
20 |
94.0 |
- |
- |
|||
|
POK600 10 |
POK600 10A2 |
600 |
10 |
130 |
270 |
725 |
780 |
20 |
127.0 |
- |
- | |||
|
POK700 10 |
POK700 10A2 |
700 |
10 |
130 |
280 |
840 |
895 |
24 |
165.0 |
- |
- |
|||
|
POK800 10 |
POK800 10A2 |
800 |
10 |
130 |
280 |
950 |
1015 |
24 |
215.0 |
- |
- |
|||
|
POK900 10 |
POK900 10A2 |
900 |
10 |
130 |
280 |
1050 |
1115 |
28 |
257.0 |
- |
- |
|||
|
POK1000 10 |
POK1000 10A2 |
1000 |
10 |
150 |
310 |
1160 |
1230 |
28 |
319.0 |
- |
- |
|||
|
POK1200 10 |
POK1200 10A2 |
1200 |
10 |
150 |
350 |
1380 |
1455 |
32 |
443.0 |
- |
- |
|||
|
POK1400 10 |
POK1400 10A2 |
1400 |
10 |
200 |
420 |
1590 |
1675 |
36 |
649.0 |
- |
- |
|||
|
POK1600 10 |
POK1600 10A2 |
1600 |
10 |
200 |
440 |
1820 |
1915 |
40 |
936.0 |
- |
- |
|||
Alle Masse in mm - Änderungen vorbehalten
