Abwasser
Flanschen

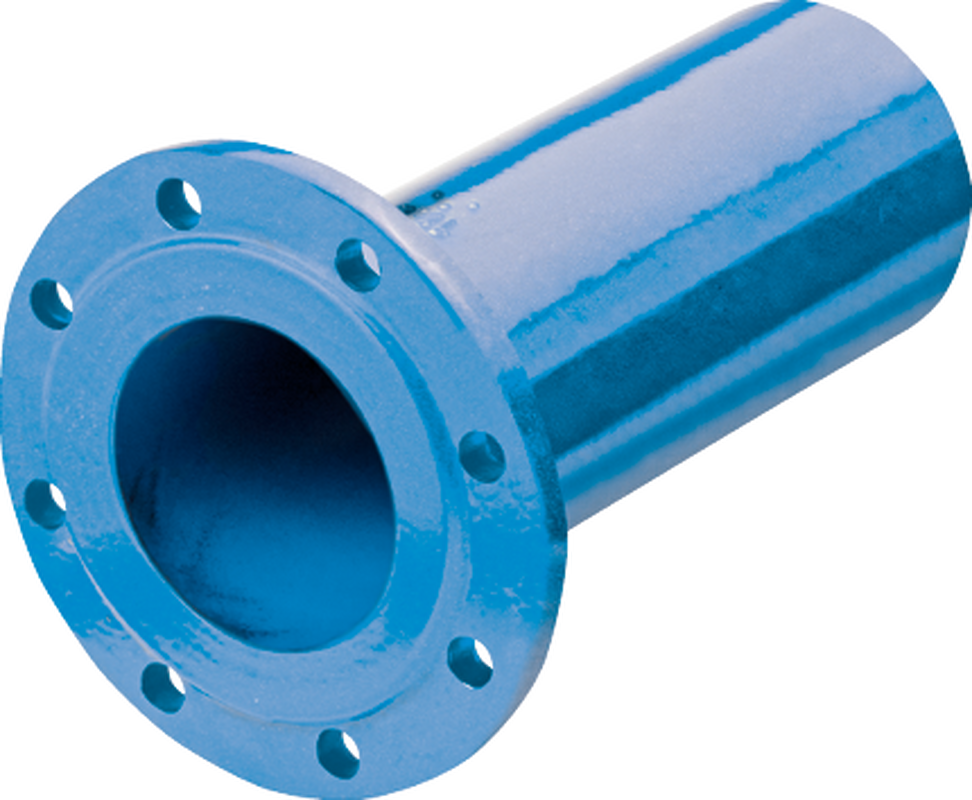

Flansch-Spitzend-Stück
Flansch-Spitzend-Stück
Typ F
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
d |
L |
L’ |
e |
kg |
|
F150 |
150 |
10/16 |
170 |
380 |
225 |
7.8 |
17.5 |
|
F200 10 |
200 |
10 |
222 |
400 |
230 |
8.4 |
25.5 |
|
F200 16 |
200 |
16 |
222 |
400 |
230 |
8.4 |
25.5 |
|
F250 10 |
250 |
10 |
274 |
420 |
240 |
9.0 |
39.5 |
|
F250 16 |
250 |
16 |
274 |
420 |
240 |
9.0 |
39.5 |
|
F300 10 |
300 |
10 |
326 |
440 |
250 |
9.6 |
47.6 |
|
F300 16 |
300 |
16 |
326 |
440 |
250 |
9.6 |
47.6 |
|
F350 10 |
350 |
10 |
378 |
460 |
260 |
10.2 |
62.1 |
|
F350 16 |
350 |
16 |
378 |
460 |
260 |
10.2 |
65.9 |
|
F400 10 |
400 |
10 |
429 |
480 |
270 |
10.8 |
80.5 |
|
F400 16 |
400 |
16 |
429 |
480 |
270 |
10.8 |
88.6 |
|
F500 10 |
500 |
10 |
532 |
520 |
290 |
12.0 |
121.0 |
|
F500 16 |
500 |
16 |
532 |
520 |
290 |
12.0 |
140.4 |
|
F600 10 |
600 |
10 |
635 |
560 |
310 |
13.2 |
193.3 |
|
F600 16 |
600 |
16 |
635 |
560 |
310 |
13.2 |
208.9 |
|
F700 10 |
700 |
10 |
738 |
600 |
330 |
14.4 |
229.5 |
|
F700 16 |
700 |
16 |
738 |
600 |
330 |
14.4 |
227.0 |
|
F800 10 |
800 |
10 |
842 |
600 |
330 |
15.6 |
314.3 |
|
F800 16 |
800 |
16 |
842 |
600 |
330 |
15.6 |
320.0 |
Alle Masse in mm - Änderungen vorbehalten
