Abwasser

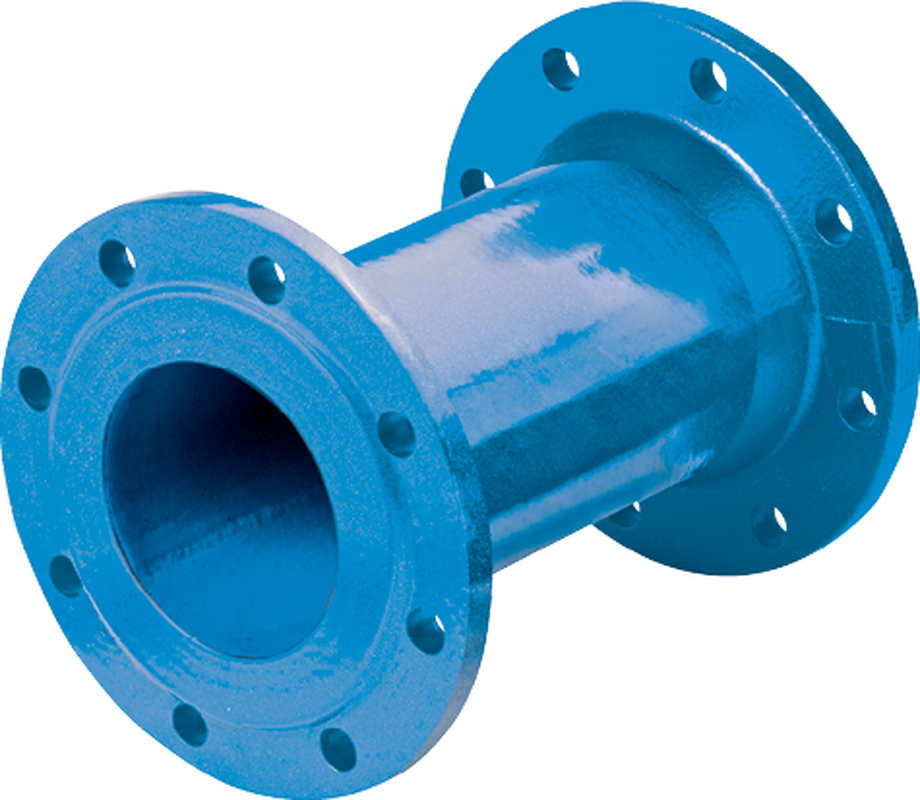

Rohr, 2 Flanschen
Typ FF
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
L |
e |
kg/m ohne Flansch sans bride senza flangia |
kg Flansch bride flangia |
|
FF150L2000 |
150 |
10/16 |
2000 |
7.8 |
32.4 |
5.0 |
|
FF200L2000 10 |
200 |
10 |
2000 |
8.4 |
46.1 |
6.9 |
|
FF200L2000 16 |
200 |
16 |
2000 |
8.4 |
46.1 |
6.7 |
|
FF250L2000 10 |
250 |
10 |
2000 |
9.0 |
61.3 |
9.8 |
|
FF250L2000 16 |
250 |
16 |
2000 |
9.0 |
61.3 |
9.4 |
|
FF300L2000 10 |
300 |
10 |
2000 |
9.6 |
78.1 |
13.0 |
|
FF300L2000 16 |
300 |
16 |
2000 |
9.6 |
78.1 |
12.6 |
|
FF350L2000 10 |
350 |
10 |
2000 |
10.2 |
96.5 |
14.7 |
|
FF350L2000 16 |
350 |
16 |
2000 |
10.2 |
96.5 |
17.5 |
|
FF400L2000 10 |
400 |
10 |
2000 |
10.8 |
116.2 |
17.2 |
|
FF400L2000 16 |
400 |
16 |
2000 |
10.8 |
116.2 |
22.1 |
|
FF500L2000 10 |
500 |
10 |
2000 |
12.0 |
160.6 |
23.2 |
|
FF500L2000 16 |
500 |
16 |
2000 |
12.0 |
160.6 |
37.4 |
|
FF600L2000 10 |
600 |
10 |
2000 |
13.2 |
211.3 |
32.8 |
|
FF600L2000 16 |
600 |
16 |
2000 |
13.2 |
211.3 |
57.6 |
|
FF700L2000 10 |
700 |
10 |
2000 |
14.4 |
268.5 |
44.3 |
|
FF700L2000 16 |
700 |
16 |
2000 |
14.4 |
268.5 |
57.4 |
|
FF800L2000 10 |
800 |
10 |
2000 |
15.6 |
332.1 |
58.5 |
|
FF800L2000 16 |
800 |
16 |
2000 |
15.6 |
332.1 |
76.8 |
|
FF900L2000 10 |
900 |
10 |
2000 |
16.8 |
401.7 |
69.6 |
|
FF900L2000 16 |
900 |
16 |
2000 |
16.8 |
401.7 |
91.4 |
|
FF1000L2000 10 |
1000 |
10 |
2000 |
18.0 |
477.7 |
87.6 |
|
FF1000L2000 16 |
1000 |
16 |
2000 |
18.0 |
477.7 |
127.0 |
|
FF1200L1000 10 |
1200 |
10 |
1000 |
20.4 |
565.2 |
121.0 |
|
FF1200L1000 16 |
1200 |
16 |
1000 |
20.4 |
565.2 |
185.0 |
Alle Masse in mm - Änderungen vorbehalten
