Abwasser

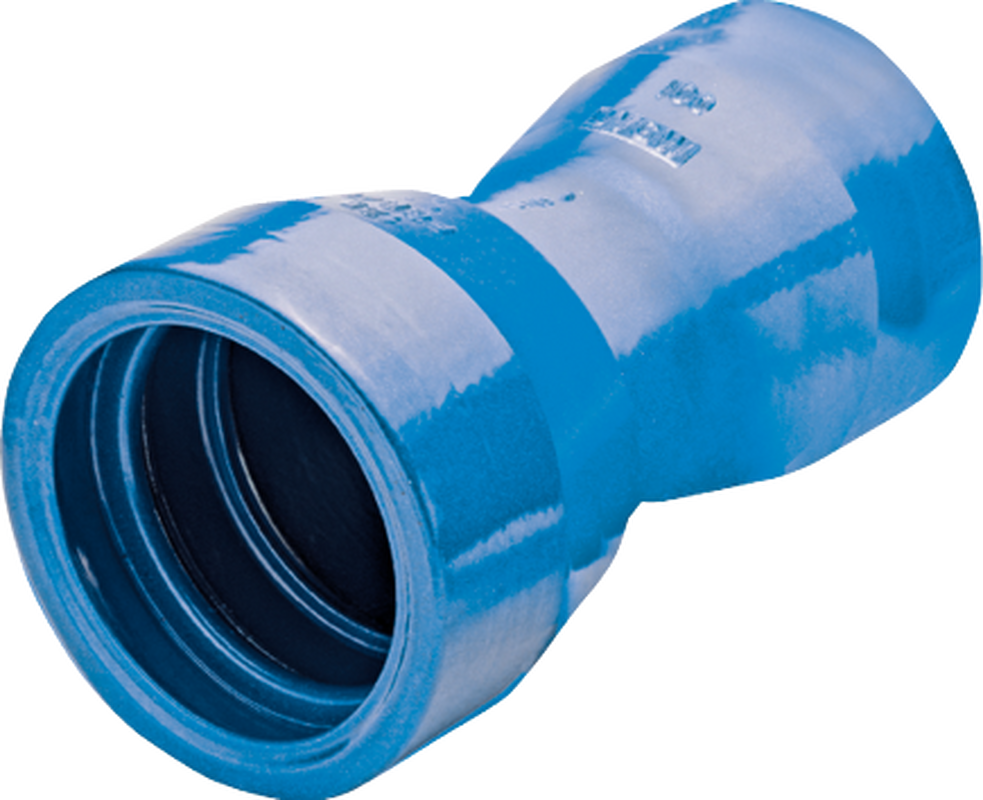

Reduktion, 2 Muffen
Typ MMR
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN1 |
DN2 |
Lu |
t1 |
t1 |
e1 |
e2 |
kg |
|
MMR150-80N |
150 |
80 |
190 |
129 |
119 |
7.8 |
7.0 |
18.4 |
|
MMR150-100N |
150 |
100 |
150 |
129 |
123 |
7.8 |
7.2 |
19.2 |
|
MMR150-125N |
150 |
125 |
100 |
129 |
126 |
7.8 |
7.5 |
19.6 |
|
MMR200-80N |
200 |
80 |
280 |
138 |
119 |
8.4 |
7.0 |
27.0 |
|
MMR200-100N |
200 |
100 |
250 |
138 |
123 |
8.4 |
7.2 |
25.0 |
|
MMR200-125N |
200 |
125 |
200 |
138 |
126 |
8.4 |
7.5 |
27.6 |
|
MMR200-150N |
200 |
150 |
150 |
138 |
129 |
8.4 |
7.8 |
27.3 |
|
MMR250-80N |
250 |
80 |
300 |
143 |
119 |
9.0 |
7.0 |
39.0 |
|
MMR250-100N |
250 |
100 |
300 |
143 |
123 |
9.0 |
7.2 |
35.2 |
|
MMR250-125N |
250 |
125 |
300 |
143 |
123 |
9.0 |
7.5 |
37.9 |
|
MMR250-150N |
250 |
150 |
250 |
143 |
129 |
9.0 |
7.8 |
41.5 |
|
MMR250-200N |
250 |
200 |
150 |
143 |
138 |
9.0 |
8.4 |
42.5 |
|
MMR300-80N |
300 |
80 |
300 |
152 |
119 |
9.6 |
7.0 |
36.4 |
|
MMR300-100N |
300 |
100 |
300 |
152 |
123 |
9.6 |
7.2 |
43.3 |
|
MMR300-150N |
300 |
150 |
350 |
152 |
129 |
9.6 |
7.8 |
58.0 |
|
MMR300-200N |
300 |
200 |
250 |
152 |
138 |
9.6 |
8.4 |
52.0 |
|
MMR300-250N |
300 |
250 |
150 |
152 |
143 |
9.6 |
9.0 |
54.2 |
|
MMR350-150N |
350 |
150 |
500 |
154 |
129 |
10.2 |
7.8 |
85.8 |
|
MMR350-200N |
350 |
200 |
360 |
154 |
138 |
10.2 |
8.4 |
56.8 |
|
MMR350-250N |
350 |
250 |
260 |
154 |
143 |
10.2 |
9.0 |
57.5 |
|
MMR350-300N |
350 |
300 |
160 |
154 |
152 |
10.2 |
9.6 |
56.4 |
|
MMR400-200N |
400 |
200 |
400 |
154 |
138 |
10.8 |
8.4 |
76.4 |
|
MMR400-250N |
400 |
250 |
360 |
154 |
143 |
10.8 |
9.0 |
86.6 |
|
MMR400-300N |
400 |
300 |
260 |
154 |
152 |
10.8 |
9.6 |
82.0 |
|
MMR400-350N |
400 |
350 |
160 |
154 |
154 |
10.8 |
10.2 |
78.3 |
|
MMR500-250N |
500 |
250 |
500 |
168 |
143 |
12.0 |
9.0 |
144.2 |
|
MMR500-300N |
500 |
300 |
500 |
168 |
152 |
12.0 |
9.6 |
151.7 |
|
MMR500-350N |
500 |
350 |
500 |
168 |
154 |
12.0 |
10.2 |
161.3 |
|
MMR500-400N |
500 |
400 |
500 |
168 |
154 |
12.0 |
10.8 |
171.0 |
|
MMR600-300N |
600 |
300 |
500 |
168 |
152 |
13.2 |
9.6 |
179.3 |
|
MMR600-350N |
600 |
350 |
600 |
168 |
154 |
13.2 |
10.2 |
206.3 |
|
MMR600-400N |
600 |
400 |
500 |
168 |
154 |
13.2 |
10.8 |
210.7 |
|
MMR600-500N |
600 |
500 |
500 |
168 |
168 |
13.2 |
12.0 |
215.4 |
|
MMR700-400N |
700 |
400 |
500 |
205 |
154 |
14.4 |
10.8 |
333.8 |
|
MMR700-500N |
700 |
500 |
500 |
205 |
168 |
14.4 |
12.0 |
383.0 |
|
MMR700-600N |
700 |
600 |
500 |
205 |
168 |
14.4 |
13.2 |
298.3 |
|
MMR800-500N |
800 |
500 |
500 |
217 |
168 |
15.6 |
12.0 |
323.6 |
|
MMR800-600N |
800 |
600 |
480 |
217 |
168 |
15.6 |
13.2 |
341.2 |
|
MMR800-700N |
800 |
700 |
280 |
217 |
205 |
15.6 |
14.4 |
362.1 |
Alle Masse in mm - Änderungen vorbehalten
