Abwasser
Steckmuffen Novo-Sit

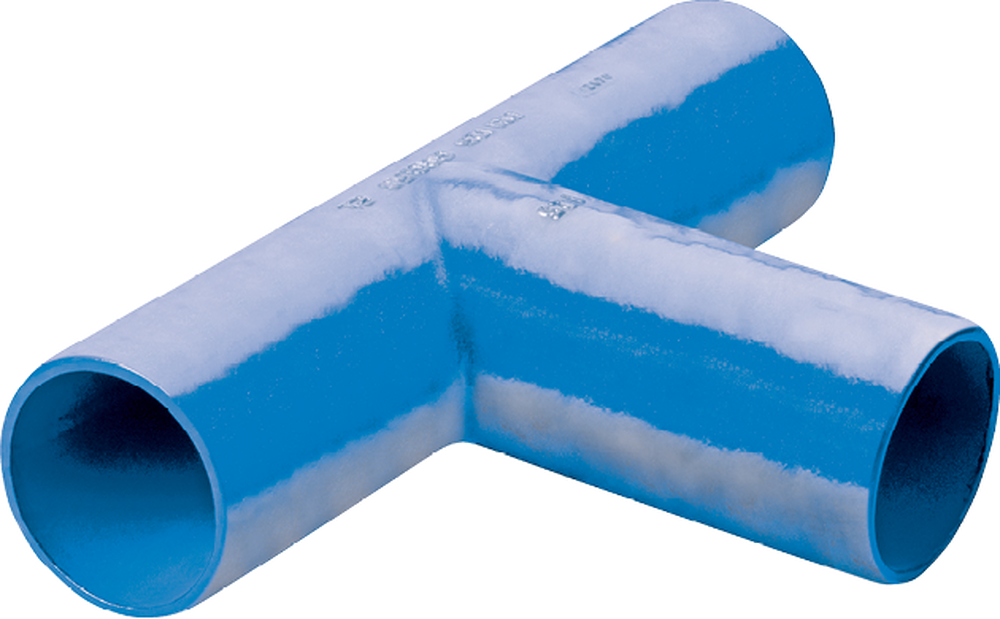

Spitzend-T mit 3 Stutzen
Spitzend-T mit 3 Stutzen
Typ IT
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN1 |
DN2 |
L |
l |
e1 |
e2 |
kg |
|
IT150-40 |
150 |
40 |
620 |
310 |
7.8 |
7.0 |
21.5 |
|
IT150-50 |
150 |
50 |
620 |
310 |
7.8 |
7.0 |
22.5 |
|
IT150-80 |
150 |
80 |
620 |
310 |
7.8 |
7.0 |
23.0 |
|
IT150-100 |
150 |
100 |
620 |
310 |
7.8 |
7.2 |
24.5 |
|
IT150-125 |
150 |
125 |
620 |
310 |
7.8 |
7.5 |
25.0 |
|
IT150-150 |
150 |
150 |
620 |
310 |
7.8 |
7.8 |
26.7 |
|
IT200-80 |
200 |
80 |
650 |
325 |
8.4 |
7.0 |
34.0 |
|
IT200-100 |
200 |
100 |
650 |
325 |
8.4 |
7.2 |
35.0 |
|
IT200-125 |
200 |
125 |
650 |
325 |
8.4 |
7.8 |
36.0 |
|
IT200-150 |
200 |
150 |
650 |
325 |
8.4 |
8.4 |
36.5 |
|
IT200-200 |
200 |
200 |
650 |
325 |
8.4 |
9.0 |
38.4 |
|
IT250-80 |
250 |
80 |
870 |
435 |
9.0 |
7.0 |
45.0 |
|
IT250-100 |
250 |
100 |
870 |
435 |
9.0 |
7.2 |
47.0 |
|
IT250-150 |
250 |
150 |
870 |
435 |
9.0 |
7.8 |
48.5 |
|
IT250-200 |
250 |
200 |
870 |
435 |
9.0 |
8.4 |
51.5 |
|
IT250-250 |
250 |
250 |
870 |
435 |
9.0 |
9.0 |
55.0 |
|
IT300-80 |
300 |
80 |
870 |
435 |
9.6 |
7.0 |
64.5 |
|
IT300-100 |
300 |
100 |
870 |
435 |
9.6 |
7.2 |
68.0 |
|
IT300-150 |
300 |
150 |
870 |
435 |
9.6 |
7.8 |
70.0 |
|
IT300-200 |
300 |
200 |
870 |
435 |
9.6 |
8.4 |
72.0 |
|
IT300-250 |
300 |
250 |
870 |
435 |
9.6 |
8.4 |
74.0 |
|
IT300-300 |
300 |
300 |
870 |
435 |
9.6 |
9.6 |
77.0 |
Alle Masse in mm - Änderungen vorbehalten
