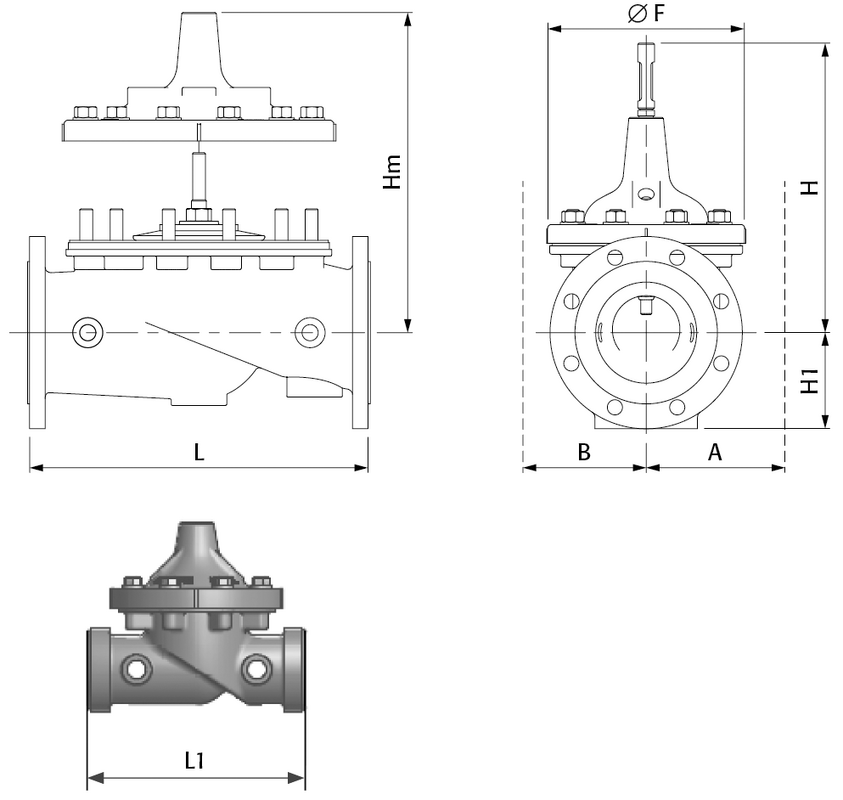

Einbaumasse
Einbaumasse
GE
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Flansch |
L |
Hm |
Ø F |
H |
H1 PN10–16 |
H1 PN25 |
A |
B |
kg |
|
DN32 |
215 |
252 |
145 |
191 |
- |
- |
150 |
100 |
13 |
|
DN40 |
215 |
252 |
145 |
191 |
75.0 |
75.0 |
150 |
100 |
13 |
|
DN50 |
254 |
285 |
170 |
215 |
82.5 |
82.5 |
150 |
100 |
20 |
|
DN65 |
280 |
320 |
205 |
245 |
93.0 |
93.0 |
165 |
115 |
25 |
|
DN80 |
305 |
345 |
235 |
260 |
100.0 |
100.0 |
203 |
127 |
30 |
|
DN100 |
381 |
450 |
295 |
345 |
110.0 |
117.5 |
216 |
152 |
50 |
|
DN150 |
508 |
540 |
400 |
415 |
142.5 |
150.0 |
230 |
205 |
95 |
|
DN200 |
645 |
645 |
510 |
495 |
170.0 |
180.0 |
285 |
260 |
170 |
|
DN250 |
756 |
780 |
600 |
595 |
- |
- |
330 |
305 |
310 |
|
DN300 |
864 |
905 |
712 |
695 |
- |
- |
370 |
362 |
470 |
|
DN400 |
1051 |
1120 |
900 |
850 |
- |
- |
475 |
450 |
970 |
Alle Masse in mm - Änderungen vorbehalten
