Abwasser
Einkammer
STANDARD
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|

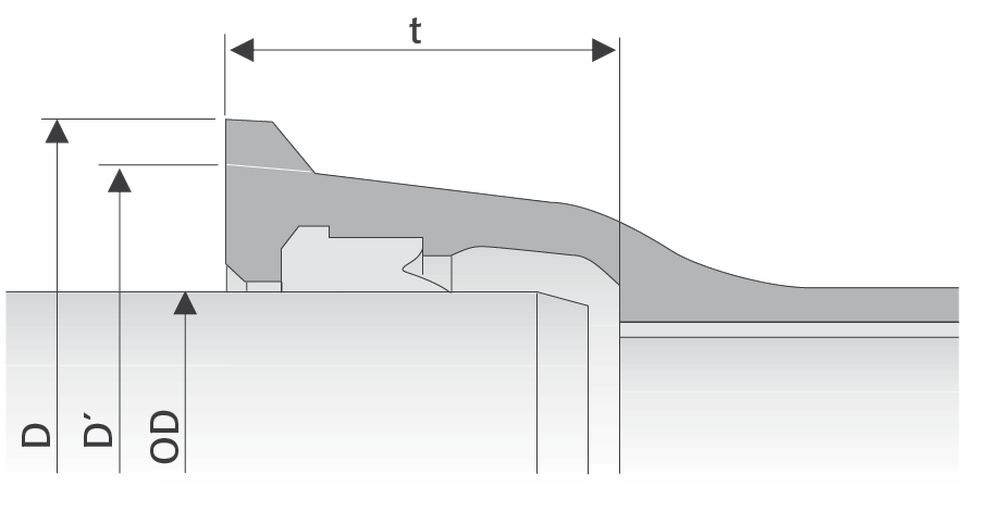

DN |
D |
D’ |
OD |
t |
Abwinkelbarkeit |
Dichtung |
|
80 |
168 |
144 |
98 |
92.5/85* |
5° |
STANDARD |
|
100 |
188 |
167 |
118 |
94.5/88* |
5° |
STANDARD |
|
125 |
215 |
193 |
144 |
97.5/91* |
5° |
STANDARD |
|
150 |
241 |
221 |
170 |
100.5/94* |
5° |
STANDARD |
|
200 |
294 |
275 |
222 |
106.5/100* |
5° |
STANDARD |
|
250 |
351 |
329 |
274 |
105.5/105* |
5° |
STANDARD |
|
300 |
408 |
385 |
326 |
107.5/110* |
5° |
STANDARD |
|
350 |
464 |
445 |
378 |
110.5/110* |
4° |
STANDARD |
|
400 |
515 |
495 |
429 |
112.5/112* |
4° |
STANDARD |
|
500 |
628 |
601 |
532 |
117.5/117.5* |
4° |
STANDARD |
|
600 |
737 |
712 |
635 |
132.5/132.5* |
4° |
STANDARD |
|
700 |
861 |
822 |
738 |
192/150* |
4°/2.5°* |
STANDARD |
|
800 |
972 |
936 |
842 |
197/160* |
4°/2.5°* |
STANDARD |
|
900 |
1080 |
1043 |
945 |
200/175* |
4°/2.5°* |
STANDARD |
|
1000 |
1189 |
1152 |
1048 |
203/185* |
4°/2.5°* |
STANDARD |
|
1100 |
1300 |
1264 |
1150 |
225/190* |
4°/2.5°* |
STANDARD |
|
1200 |
1413 |
1374 |
1255 |
235/195* |
4°/2.5°* |
STANDARD |
|
1400 |
1600 |
1592 |
1462 |
245/255* |
3°/2.5°* |
STANDARD |
|
1500 |
1742 |
1710 |
1571 |
265/280* |
3°/2.5°* |
STANDARD |
|
1600 |
1820 |
1816 |
1668 |
265/275* |
3°/2.5°* |
STANDARD |
|
1800 |
2038 |
2032 |
1875 |
275/258* |
2.5°/2°* |
STANDARD |
|
2000 |
2269 |
2259 |
2089 |
290/290* |
2°/1.5°* |
STANDARD |
Alle Masse in mm - Änderungen vorbehalten
