Abwasser
Verstellbereich +/- 25 mm

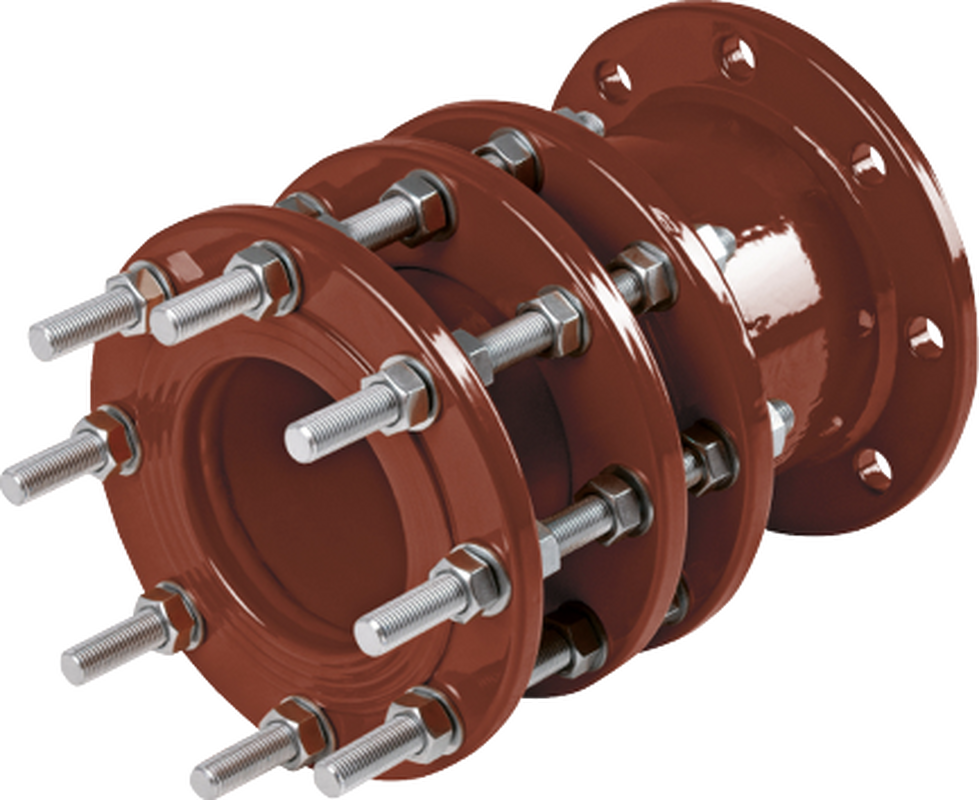

Typ PF INT
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
L |
A |
K |
D |
Gewindeanker |
kg |
|
|
V |
A2 |
||||||||
|
PF50INT |
PF50A2INT |
50 |
10/16 |
300 |
250 |
125 |
165 |
4 |
13 |
|
PF65INT |
PF65A2INT |
65 |
10/16 |
300 |
250 |
145 |
185 |
4 |
16 |
|
PF80INT |
PF80A2INT |
80 |
10/16 |
300 |
250 |
160 |
200 |
8 |
21 |
|
PF100INT |
PF100A2INT |
100 |
10/16 |
300 |
250 |
180 |
220 |
8 |
26 |
|
PF125INT |
PF125A2INT |
125 |
10/16 |
300 |
250 |
210 |
250 |
8 |
32 |
|
PF150INT |
PF150A2INT |
150 |
10/16 |
350 |
290 |
240 |
285 |
8 |
45 |
|
PF200 10INT |
PF200 10A2INT |
200 |
10 |
350 |
290 |
295 |
340 |
8 |
55 |
|
PF200 16INT |
PF200 16A2INT |
200 |
16 |
350 |
290 |
295 |
340 |
12 |
60 |
|
PF250 10INT |
PF250 10A2INT |
250 |
10 |
350 |
290 |
350 |
395 |
12 |
78 |
|
PF250 16INT |
PF250 16A2INT |
250 |
16 |
375 |
320 |
355 |
405 |
12 |
92 |
|
PF300 10INT |
PF300 10A2INT |
300 |
10 |
350 |
290 |
400 |
445 |
12 |
85 |
|
PF300 16INT |
PF300 16A2INT |
300 |
16 |
375 |
320 |
410 |
460 |
12 |
109 |
|
PF350 10INT |
PF350 10A2INT |
350 |
10 |
350 |
290 |
460 |
505 |
16 |
124 |
|
PF350 16INT |
PF350 16A2INT |
350 |
16 |
425 |
350 |
470 |
520 |
16 |
162 |
|
PF400 10INT |
PF400 10A2INT |
400 |
10 |
375 |
320 |
515 |
565 |
16 |
148 |
|
PF400 16INT |
PF400 16A2INT |
400 |
16 |
425 |
350 |
525 |
580 |
16 |
190 |
|
PF500 10INT |
PF500 10A2INT |
500 |
10 |
375 |
320 |
620 |
670 |
20 |
184 |
|
PF500 16INT |
PF500 16A2INT |
500 |
16 |
450 |
380 |
650 |
715 |
20 |
283 |
|
PF600 10INT |
PF600 10A2INT |
600 |
10 |
400 |
350 |
725 |
780 |
20 |
255 |
|
PF600 16INT |
PF600 16A2INT |
600 |
16 |
475 |
420 |
770 |
840 |
20 |
416 |
|
PF700 10INT |
PF700 10A2INT |
700 |
10 |
400 |
350 |
840 |
895 |
24 |
322 |
|
PF700 16INT |
PF700 16A2INT |
700 |
16 |
475 |
420 |
840 |
910 |
24 |
444 |
|
PF800 10INT |
PF800 10A2INT |
800 |
10 |
450 |
380 |
950 |
1015 |
24 |
438 |
|
PF800 16INT |
PF800 16A2INT |
800 |
16 |
525 |
450 |
950 |
1025 |
24 |
568 |
|
PF900 10INT |
PF900 10A2INT |
900 |
10 |
450 |
380 |
1050 |
1115 |
28 |
522 |
|
PF900 16INT |
PF900 16A2INT |
900 |
16 |
525 |
450 |
1050 |
1125 |
28 |
692 |
|
PF1000 10INT |
PF1000 10A2INT |
1000 |
10 |
475 |
420 |
1160 |
1230 |
28 |
592 |
|
PF1000 16INT |
PF1000 16A2INT |
1000 |
16 |
550 |
450 |
1170 |
1255 |
28 |
890 |
|
PF1100 10INT |
PF1100 10A2INT |
1100 |
10 |
475 |
420 |
1270 |
1340 |
32 |
748 |
|
PF1100 16INT |
PF1100 16A2INT |
1100 |
16 |
575 |
450 |
1270 |
1355 |
32 |
1010 |
|
PF1200 10INT |
PF1200 10A2INT |
1200 |
10 |
525 |
450 |
1380 |
1455 |
32 |
881 |
|
PF1200 16INT |
PF1200 16A2INT |
1200 |
16 |
600 |
525 |
1390 |
1485 |
32 |
1392 |
|
PF1400 10INT |
PF1400 10A2INT |
1400 |
10 |
550 |
470 |
1590 |
1675 |
36 |
1254 |
|
PF1400 16INT |
PF1400 16A2INT |
1400 |
16 |
625 |
525 |
1590 |
1685 |
36 |
1682 |
|
PF1500 10INT |
PF1500 10A2INT |
1500 |
10 |
550 |
470 |
1700 |
1785 |
36 |
1472 |
Alle Masse in mm - Änderungen vorbehalten
