Abwasser
Verstellbereich +/- 10 mm

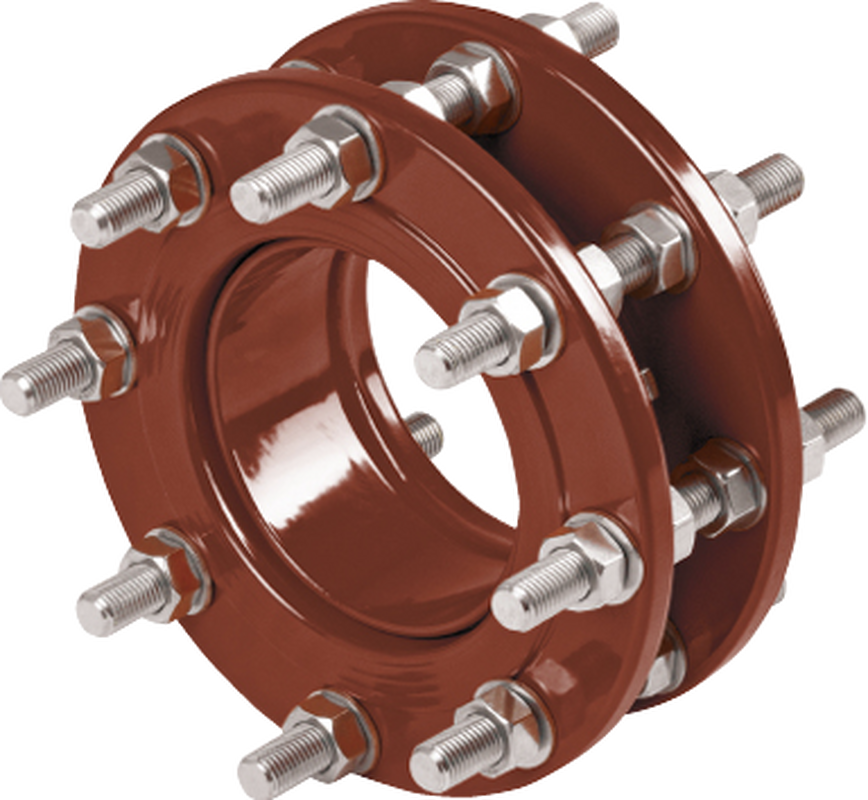

Typ POK A
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
BIM
|
Artikel-Nr. |
DN |
PN |
L |
A |
K |
D |
Gewindeanker |
kg |
|
|
V |
A2 |
||||||||
|
POK50A |
POK50A2A |
50 |
10/16 |
100 |
200 |
125 |
165 |
4 |
8 |
|
POK65A |
POK65A2A |
65 |
10/16 |
100 |
200 |
145 |
185 |
4 |
9 |
|
POK80A |
POK80A2A |
80 |
10/16 |
100 |
210 |
160 |
200 |
8 |
12 |
|
POK100A |
POK100A2A |
100 |
10/16 |
100 |
210 |
180 |
220 |
8 |
13 |
|
POK125A |
POK125A2A |
125 |
10/16 |
100 |
210 |
210 |
250 |
8 |
16 |
|
POK150A |
POK150A2A |
150 |
10/16 |
100 |
230 |
240 |
285 |
8 |
21 |
|
POK200 10A |
POK200 10A2A |
200 |
10 |
100 |
230 |
295 |
340 |
8 |
28 |
|
POK200 16A |
POK200 16A2A |
200 |
16 |
100 |
230 |
295 |
340 |
12 |
31 |
|
POK250 10A |
POK250 10A2A |
250 |
10 |
110 |
240 |
350 |
395 |
12 |
39 |
|
POK250 16A |
POK250 16A2A |
250 |
16 |
120 |
260 |
355 |
405 |
12 |
49 |
|
POK300 10A |
POK300 10A2A |
300 |
10 |
110 |
240 |
400 |
445 |
12 |
45 |
|
POK300 16A |
POK300 16A2A |
300 |
16 |
130 |
270 |
410 |
460 |
12 |
59 |
|
POK350 10A |
POK350 10A2A |
350 |
10 |
110 |
240 |
460 |
505 |
16 |
59 |
|
POK350 16A |
POK350 16A2A |
350 |
16 |
130 |
270 |
470 |
520 |
16 |
81 |
|
POK400 10A |
POK400 10A2A |
400 |
10 |
110 |
260 |
515 |
565 |
16 |
74 |
|
POK400 16A |
POK400 16A2A |
400 |
16 |
140 |
295 |
525 |
580 |
16 |
102 |
|
POK500 10A |
POK500 10A2A |
500 |
10 |
110 |
260 |
620 |
670 |
20 |
94 |
|
POK600 10A |
POK600 10A2A |
600 |
10 |
130 |
270 |
725 |
780 |
20 |
127 |
|
POK700 10A |
POK700 10A2A |
700 |
10 |
130 |
280 |
840 |
895 |
24 |
165 |
|
POK800 10A |
POK800 10A2A |
800 |
10 |
130 |
280 |
950 |
1015 |
24 |
215 |
|
POK900 10A |
POK900 10A2A |
900 |
10 |
130 |
280 |
1050 |
1115 |
28 |
257 |
|
POK1000 10A |
POK1000 10A2A |
1000 |
10 |
150 |
310 |
1160 |
1230 |
28 |
319 |
|
POK1200 10A |
POK1200 10A2A |
1200 |
10 |
150 |
350 |
1380 |
1455 |
32 |
443 |
|
POK1400 10A |
POK1400 10A2A |
1400 |
10 |
200 |
420 |
1590 |
1675 |
36 |
649 |
|
POK1600 10A |
POK1600 10A2A |
1600 |
10 |
200 |
440 |
1820 |
1915 |
40 |
936 |
Alle Masse in mm - Änderungen vorbehalten
