Schieberkombinationen etec®

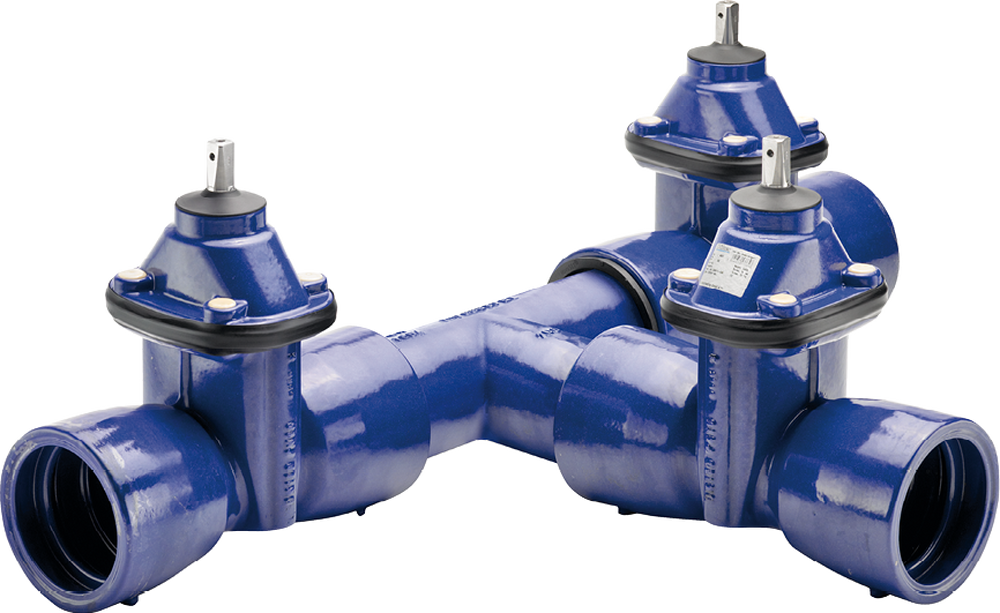

Multi III mit Steckmuffen Novo-Sit
Multi III mit Steckmuffen Novo-Sit
Typ 636
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|

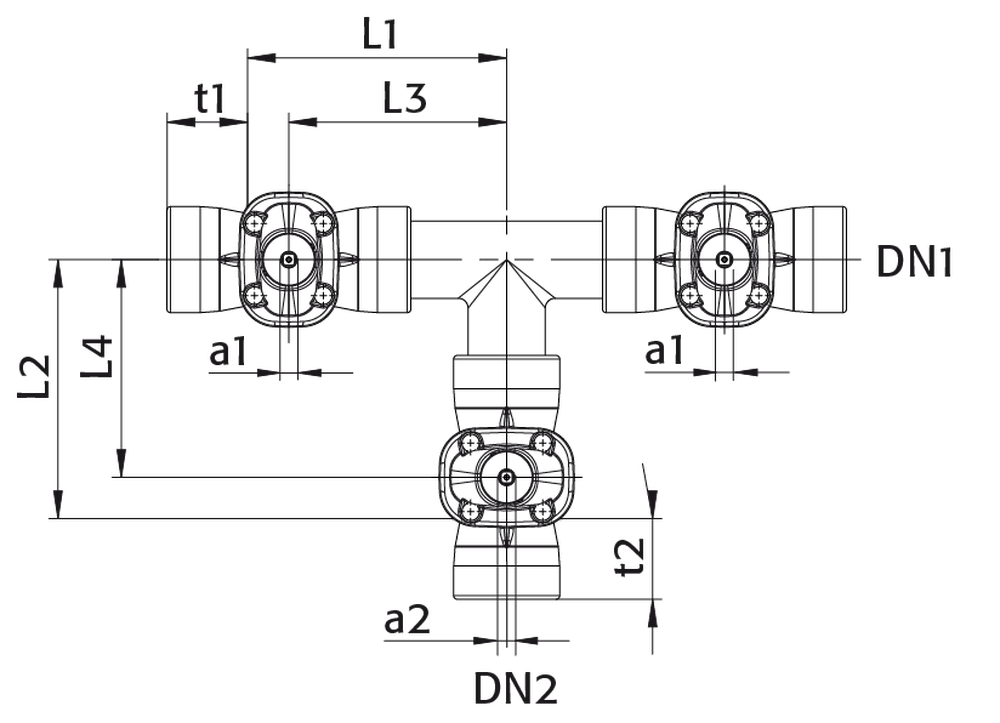

Artikel-Nr. |
DN1 |
DN2 |
PN |
L1 |
L2 |
L3 |
L4 |
t1 |
t2 |
□a1 |
□a2 |
kg |
NPK-Nr. |
|
636 80-80N E |
80 |
80 |
16 |
384 |
384 |
327.0 |
327.0 |
119 |
119 |
17 |
17 |
71.2 |
822.111 |
|
636 100-100N E |
100 |
100 |
16 |
402 |
402 |
338.5 |
338.5 |
123 |
123 |
19 |
19 |
88.8 |
822.312 |
|
636 125-100N E |
125 |
100 |
16 |
427 |
402 |
363.5 |
338.5 |
126 |
123 |
19 |
19 |
107.0 |
822.343 |
|
636 125-125N E |
125 |
125 |
16 |
440 |
440 |
370.0 |
370.0 |
126 |
126 |
19 |
19 |
116.1 |
822.313 |
|
636 150-100N E |
150 |
100 |
16 |
437 |
402 |
373.5 |
338.5 |
129 |
123 |
19 |
19 |
125.7 |
822.344 |
|
636 150-125N E |
150 |
125 |
16 |
450 |
440 |
380.0 |
370.0 |
129 |
126 |
19 |
19 |
132.3 |
822.354 |
|
636 150-150N E |
150 |
150 |
16 |
450 |
450 |
380.0 |
380.0 |
129 |
129 |
19 |
19 |
141.6 |
822.314 |
|
636 200-100N E |
200 |
100 |
16 |
452 |
402 |
388.5 |
338.5 |
138 |
123 |
24 |
19 |
176.6 |
822.345 |
|
636 200-125N E |
200 |
125 |
16 |
465 |
440 |
395.0 |
370.0 |
138 |
126 |
24 |
19 |
183.7 |
822.355 |
|
636 200-150N E |
200 |
150 |
16 |
465 |
450 |
395.0 |
380.0 |
138 |
129 |
24 |
19 |
191.8 |
822.365 |
|
636 200-200N E |
200 |
200 |
16 |
477 |
477 |
401.0 |
401.0 |
138 |
138 |
24 |
24 |
213.9 |
822.315 |
Alle Masse in mm - Änderungen vorbehalten
