Wasser

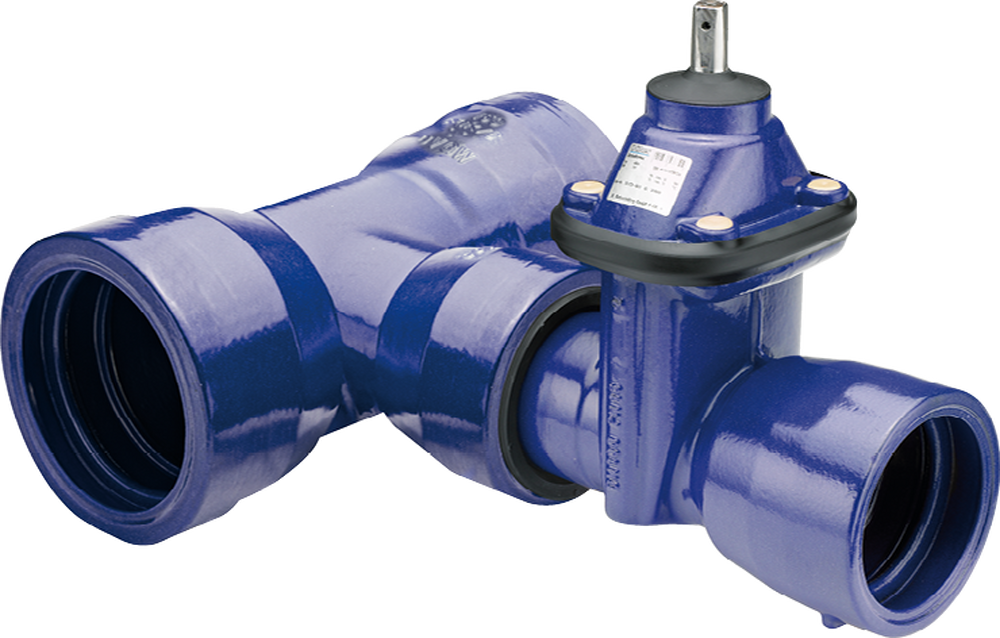

Multi I mit Steckmuffen Novo-Sit
Typ 616
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN1 |
DN2 |
PN |
h1 |
L1 |
L2 |
t1 |
t2 |
Lu |
□a |
kg |
NPK-Nr. | |
|
616 80-80N E |
80 |
80 |
16 |
270 |
371 |
315 |
84 |
119 |
85.0 |
14 |
36.4 |
822.111 |
|
|
616 100-100N E |
100 |
100 |
16 |
295 |
394 |
330 |
88 |
123 |
95.0 |
19 |
42.6 |
822.112 |
|
|
616 125-100N E |
125 |
100 |
16 |
295 |
409 |
345 |
91 |
123 |
98.0 |
19 |
50.1 |
822.143 |
|
|
616 125-125N E |
125 |
125 |
16 |
330 |
469 |
400 |
91 |
126 |
113.0 |
19 |
59.0 |
822.113 |
|
|
616 150-100N E |
150 |
100 |
16 |
295 |
419 |
355 |
94 |
123 |
98.0 |
19 |
55.4 |
822.144 |
|
|
616 150-125N E |
150 |
125 |
16 |
330 |
484 |
415 |
94 |
126 |
128.0 |
19 |
66.6 |
822.154 |
|
|
616 150-150N E |
150 |
150 |
16 |
373 |
486 |
415 |
94 |
129 |
128.0 |
19 |
74.9 |
822.114 |
|
|
616 200-100N E |
200 |
100 |
16 |
295 |
444 |
380 |
100 |
123 |
100.0 |
19 |
63.4 |
822.145 |
|
|
616 200-125N E |
200 |
125 |
16 |
330 |
504 |
435 |
100 |
126 |
127.5 |
19 |
76.6 |
822.155 |
|
|
616 200-150N E |
200 |
150 |
16 |
373 |
511 |
440 |
100 |
129 |
127.5 |
19 |
88.6 |
822.165 |
|
|
616 200-200N E |
200 |
200 |
16 |
462 |
542 |
465 |
100 |
138 |
157.5 |
24 |
113.5 |
822.115 |
|
|
616 250-100N E |
250 |
100 |
16 |
295 |
474 |
410 |
105 |
123 |
100.0 |
19 |
81.5 |
822.146 |
|
|
616 250-125N E |
250 |
125 |
16 |
330 |
534 |
465 |
105 |
126 |
100.0 |
19 |
88.8 |
822.156 |
|
|
616 250-150N E |
250 |
150 |
16 |
373 |
541 |
470 |
105 |
129 |
130.0 |
19 |
101.9 |
822.166 |
|
|
616 250-200N E |
250 |
200 |
16 |
462 |
572 |
495 |
105 |
138 |
157.5 |
24 |
127.4 |
822.176 |
|
|
616 250-250N E |
250 |
250 |
16 |
648 |
582 |
500 |
105 |
143 |
187.5 |
27 |
192.1 |
822.116 |
|
|
616 300-100N E |
300 |
100 |
16 |
270 |
499 |
435 |
110 |
123 |
102.5 |
19 |
95.6 |
822.147 |
|
|
616 300-125N E |
300 |
125 |
16 |
330 |
559 |
490 |
110 |
126 |
102.5 |
19 |
103.6 |
822.157 |
|
|
616 300-150N E |
300 |
150 |
16 |
373 |
561 |
490 |
110 |
129 |
160.0 |
19 |
118.3 |
822.167 |
|
|
616 300-200N E |
300 |
200 |
16 |
462 |
592 |
515 |
110 |
138 |
160.0 |
24 |
142.4 |
822.177 |
|
|
616 300-250N E |
300 |
250 |
16 |
648 |
602 |
520 |
110 |
143 |
215.0 |
27 |
211.4 |
822.187 |
|
|
616 300-300N E |
300 |
300 |
16 |
723 |
613 |
525 |
110 |
152 |
215.0 |
27 |
233.0 |
822.117 |
Alle Masse in mm - Änderungen vorbehalten
