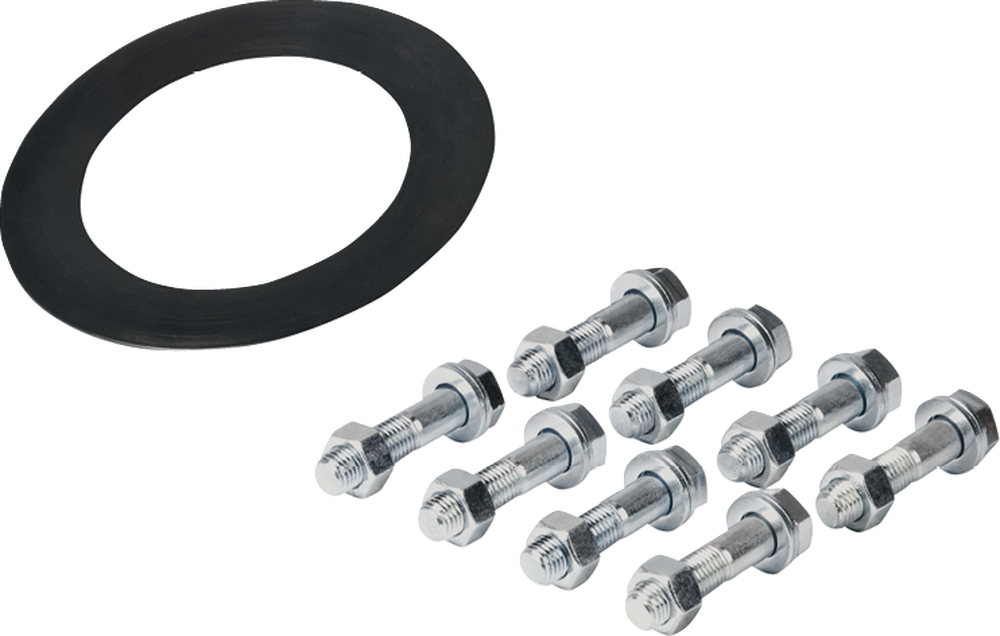

Losflanschverbindung, verzinkt
FLVL PN 10/16
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
D |
b |
k |
d4 |
f |
Schrauben |
MxL |
d2 |
NPK-Nr. |
|
FLVL80V |
80 |
10/16 |
200 |
22.0 |
160 |
132 |
3 |
8 |
M16x85 |
19 |
- |
|
FLVL100V10 |
100 |
10 |
235 |
23.0 |
180 |
156 |
3 |
8 |
M16x90 |
19 |
- |
|
FLVL100V16 |
100 |
16 |
220 |
23.0 |
180 |
156 |
3 |
8 |
M16x90 |
19 |
- |
|
FLVL125V10 |
125 |
10 |
270 |
24.5 |
210 |
184 |
3 |
8 |
M16x90 |
19 |
- |
|
FLVL125V16 |
125 |
16 |
250 |
24.5 |
210 |
184 |
3 |
8 |
M16x90 |
19 |
- |
|
FLVL150V10 |
150 |
10 |
300 |
26.0 |
240 |
221 |
3 |
8 |
M20x100 |
23 |
- |
|
FLVL150V16 |
150 |
16 |
285 |
26.0 |
240 |
221 |
3 |
8 |
M20x100 |
23 |
- |
|
FLVL200V10 |
200 |
10 |
340 |
29.0 |
295 |
266 |
3 |
8 |
M20x100 |
23 |
- |
|
FLVL200V16 |
200 |
16 |
340 |
29.0 |
295 |
266 |
3 |
12 |
M20x100 |
23 |
- |
|
FLVL250V10 |
250 |
10 |
400 |
32.0 |
350 |
319 |
3 |
12 |
M20x110 |
23 |
- |
|
FLVL250V16 |
250 |
16 |
400 |
32.0 |
355 |
319 |
3 |
12 |
M24x110 |
28 |
- |
|
FLVL300V10 |
300 |
10 |
455 |
36.0 |
400 |
370 |
4 |
12 |
M20x120 |
23 |
- |
|
FLVL300V16 |
300 |
16 |
455 |
36.0 |
410 |
370 |
4 |
12 |
M24x130 |
28 |
- |
|
FLVL350V10 |
350 |
10 |
505 |
39.0 |
460 |
429 |
4 |
16 |
M20x130 |
23 |
- |
|
FLVL350V16 |
350 |
16 |
520 |
39.0 |
470 |
429 |
4 |
16 |
M24x130 |
28 |
- |
|
FLVL400V10 |
400 |
10 |
565 |
42.0 |
515 |
480 |
4 |
16 |
M24x140 |
28 |
- |
|
FLVL400V16 |
400 |
16 |
580 |
42.0 |
525 |
480 |
4 |
16 |
M27x150 |
31 |
- |
|
FLVL500V10 |
500 |
10 |
670 |
48.0 |
620 |
582 |
4 |
20 |
M24x150 |
28 |
- |
|
FLVL500V16 |
500 |
16 |
715 |
48.0 |
650 |
609 |
4 |
20 |
M30x160 |
34 |
- |
|
FLVL600V10 |
600 |
10 |
780 |
55.0 |
725 |
682 |
7 |
20 |
M27x170 |
31 |
- |
|
FLVL600V16 |
600 |
16 |
840 |
55.0 |
770 |
720 |
7 |
20 |
M33x180 |
37 |
- |
Alle Masse in mm - Änderungen vorbehalten
