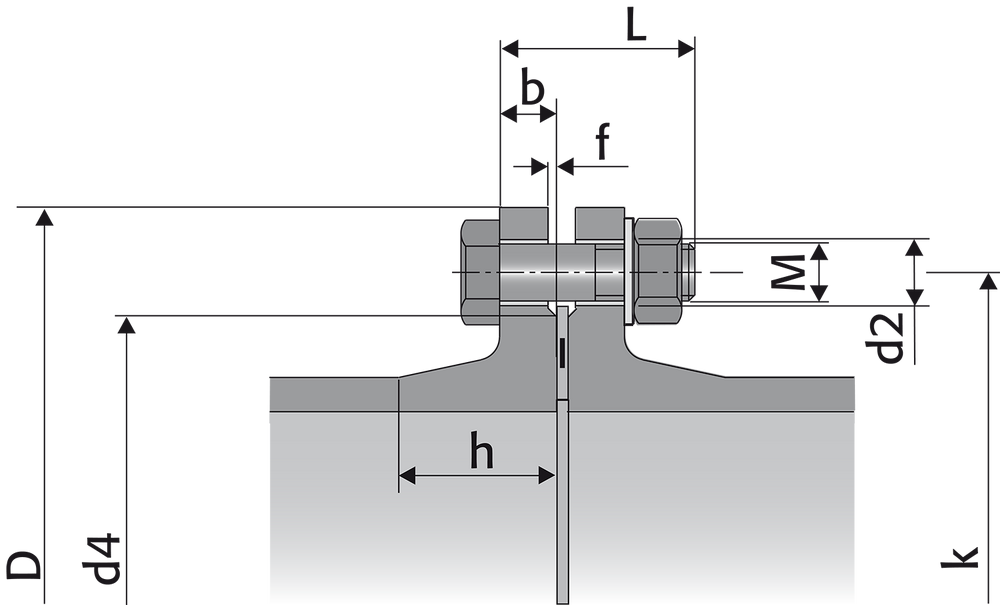

Flanschverbindung, verzinkt
FLV PN 10/16
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
D |
b |
k |
h |
d4 |
f |
Schrauben |
MxL |
d2 |
NPK-Nr. |
|
FLV40V |
40 |
10/16 |
150 |
19.0 |
110 |
39 |
84 |
3 |
4 |
M16x70 |
19 |
274.117 |
|
FLV50V |
50 |
10/16 |
165 |
19.0 |
125 |
40 |
99 |
3 |
4 |
M16x70 |
19 |
274.118 |
|
FLV65V |
65 |
10/16 |
185 |
19.0 |
145 |
42 |
118 |
3 |
4 |
M16x70 |
19 |
- |
|
FLV80V |
80 |
10/16 |
200 |
19.0 |
160 |
43 |
132 |
3 |
8 |
M16x70 |
19 |
274.121 |
|
FLV100V |
100 |
10/16 |
220 |
19.0 |
180 |
45 |
156 |
3 |
8 |
M16x70 |
19 |
274.122 |
|
FLV125V |
125 |
10/16 |
250 |
19.0 |
210 |
48 |
184 |
3 |
8 |
M16x70 |
19 |
274.123 |
|
FLV150V |
150 |
10/16 |
285 |
19.0 |
240 |
50 |
211 |
3 |
8 |
M20x75 |
23 |
274.124 |
|
FLV200V10 |
200 |
10 |
340 |
20.0 |
295 |
55 |
266 |
3 |
8 |
M20x75 |
23 |
274.145 |
|
FLV200V16 |
200 |
16 |
340 |
20.0 |
295 |
55 |
266 |
3 |
12 |
M20x75 |
23 |
274.165 |
|
FLV250V10 |
250 |
10 |
400 |
22.0 |
350 |
60 |
319 |
3 |
12 |
M20x80 |
23 |
274.146 |
|
FLV250V16 |
250 |
16 |
400 |
22.0 |
355 |
60 |
319 |
3 |
12 |
M24x90 |
28 |
274.166 |
|
FLV300V10 |
300 |
10 |
455 |
24.5 |
400 |
65 |
370 |
4 |
12 |
M20x90 |
23 |
274.147 |
|
FLV300V16 |
300 |
16 |
455 |
24.5 |
410 |
65 |
370 |
4 |
12 |
M24x100 |
28 |
274.167 |
|
FLV350V10 |
350 |
10 |
505 |
24.5 |
460 |
70 |
429 |
4 |
16 |
M20x90 |
23 |
- |
|
FLV350V16 |
350 |
16 |
520 |
26.5 |
470 |
70 |
429 |
4 |
16 |
M24x100 |
28 |
- |
|
FLV400V10 |
400 |
10 |
565 |
24.5 |
515 |
75 |
480 |
4 |
16 |
M24x100 |
28 |
274.148 |
|
FLV400V16 |
400 |
16 |
580 |
28.0 |
525 |
75 |
480 |
4 |
16 |
M27x110 |
31 |
274.168 |
|
FLV500V10 |
500 |
10 |
670 |
26.5 |
620 |
85 |
582 |
4 |
20 |
M24x100 |
28 |
- |
|
FLV500V16 |
500 |
16 |
715 |
31.5 |
650 |
85 |
609 |
4 |
20 |
M30x120 |
34 |
- |
|
FLV600V10 |
600 |
10 |
780 |
30.0 |
725 |
95 |
682 |
5 |
20 |
M27x110 |
31 |
- |
|
FLV600V16 |
600 |
16 |
840 |
36.0 |
770 |
95 |
720 |
5 |
20 |
M33x130 |
37 |
- |
|
FLV700V10 |
700 |
10 |
895 |
32.5 |
840 |
105 |
794 |
5 |
24 |
M27x120 |
31 |
- |
|
FLV700V16 |
700 |
16 |
910 |
39.5 |
840 |
105 |
794 |
5 |
24 |
M33x140 |
37 |
- |
|
FLV800V10 |
800 |
10 |
1015 |
35.0 |
950 |
115 |
901 |
5 |
24 |
M30x130 |
34 |
- |
|
FLV800V16 |
800 |
16 |
1025 |
43.0 |
950 |
115 |
901 |
5 |
24 |
M36x150 |
41 |
- |
|
FLV900V10 |
900 |
10 |
1115 |
37.5 |
1050 |
125 |
1001 |
5 |
28 |
M30x130 |
34 |
- |
|
FLV900V16 |
900 |
16 |
1125 |
48.5 |
1050 |
125 |
1001 |
5 |
28 |
M36x160 |
41 |
- |
|
FLV1000V10 |
1000 |
10 |
1230 |
40.0 |
1160 |
135 |
1112 |
5 |
28 |
M33x140 |
37 |
- |
|
FLV1000V16 |
1000 |
16 |
1255 |
50.0 |
1170 |
135 |
1112 |
5 |
28 |
M39x170 |
44 |
- |
|
FLV1200V10 |
1200 |
10 |
1455 |
45.0 |
1380 |
155 |
1328 |
5 |
32 |
M36x160 |
41 |
- |
|
FLV1200V16 |
1200 |
16 |
1485 |
57.0 |
1390 |
155 |
1328 |
5 |
32 |
M45x190 |
50 |
- |
|
FLV1400V10 |
1400 |
10 |
1675 |
46.0 |
1590 |
175 |
1530 |
5 |
36 |
M39x180 |
44 |
- |
|
FLV1400V16 |
1400 |
16 |
1685 |
60.0 |
1590 |
175 |
1530 |
5 |
36 |
M45x210 |
50 |
- |
|
FLV1600V10 |
1600 |
10 |
1915 |
49.0 |
1820 |
195 |
1750 |
5 |
40 |
M45x190 |
50 |
- |
|
FLV1600V16 |
1600 |
16 |
1930 |
65.0 |
1820 |
195 |
1750 |
5 |
40 |
M52x230 |
57 |
- |
|
FLV1800V10 |
1800 |
10 |
2115 |
52.0 |
2020 |
215 |
1950 |
5 |
44 |
M45x190 |
50 |
- |
|
FLV1800V16 |
1800 |
16 |
2130 |
70.0 |
2020 |
215 |
1950 |
5 |
44 |
M52x230 |
57 |
- |
|
FLV2000V10 |
2000 |
10 |
2325 |
55.0 |
2230 |
235 |
2150 |
5 |
48 |
M45x190 |
50 |
- |
|
FLV2000V16 |
2000 |
16 |
2345 |
75.0 |
2230 |
235 |
2150 |
5 |
48 |
M52x260 |
63 |
- |
Alle Masse in mm - Änderungen vorbehalten
