Wasser
Schraubmuffen

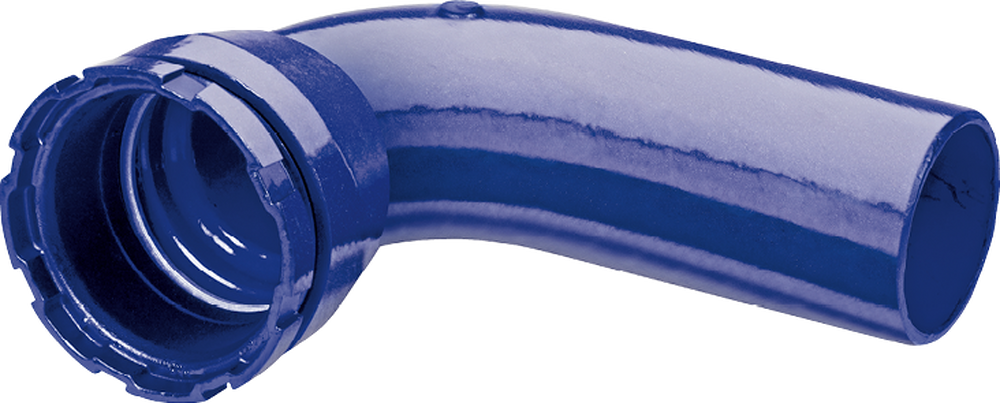

Bogen 90° 1 Muffe
Bogen 90° 1 Muffe
Typ MQ
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
L |
Lu |
e |
t |
kg |
NPK-Nr. |
|
MQ40 90U E |
40 |
200 |
60.0 |
7.0 |
74 |
9.5 |
- |
|
MQ50 90U E |
50 |
300 |
150.0 |
7.0 |
77 |
11.0 |
- |
|
MQ80 90U E |
80 |
312 |
102.4 |
7.0 |
84 |
8.0 |
221.111 |
|
MQ100 90U E |
100 |
333 |
123.0 |
7.2 |
88 |
10.8 |
221.112 |
|
MQ125 90U E |
125 |
374 |
148.8 |
7.5 |
91 |
16.1 |
221.113 |
|
MQ150 90U E |
150 |
419 |
174.5 |
7.8 |
94 |
23.8 |
221.114 |
|
MQ200 90U E |
200 |
491 |
226.0 |
8.4 |
100 |
43.2 |
221.115 |
|
MQ250 90U E |
250 |
583 |
280.0 |
9.0 |
106 |
70.0 |
221.116 |
|
MQ300 90U E |
300 |
660 |
330.0 |
9.6 |
110 |
96.0 |
221.117 |
|
MQ350 90U E |
350 |
580 |
410.0 |
10.2 |
113 |
139.0 |
- |
|
MQ400 90U E |
400 |
625 |
430.0 |
10.8 |
116 |
186.3 |
221.118 |
Alle Masse in mm - Änderungen vorbehalten
