Wasser

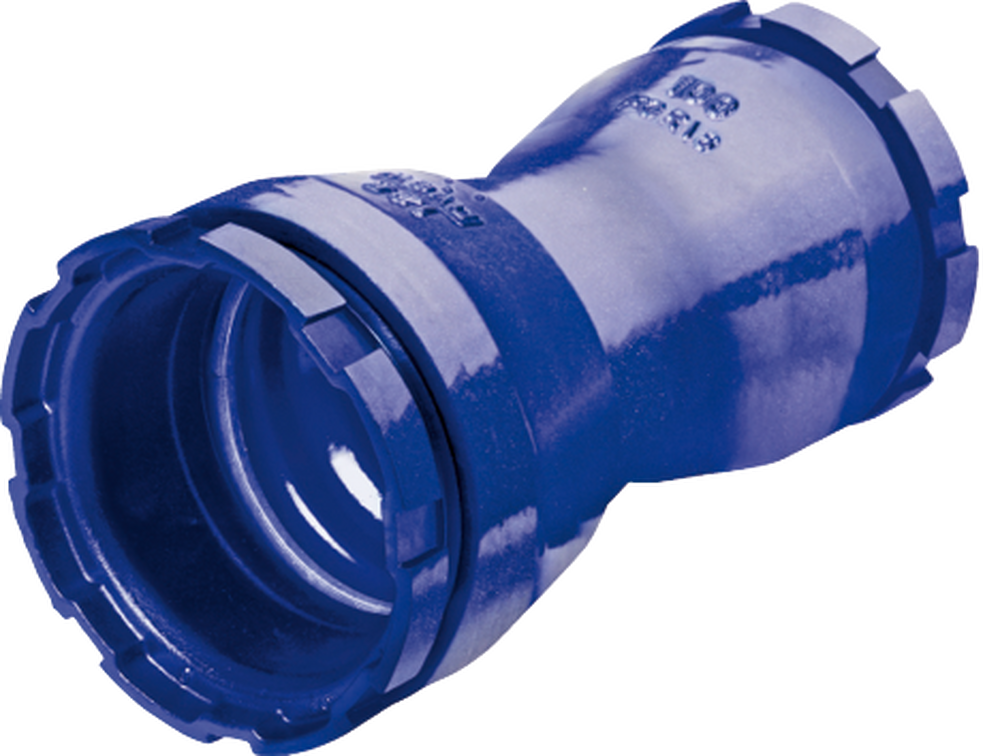

Reduktion 2 Muffen
Typ MMR
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN1 |
DN2 |
Lu |
e1 |
e2 |
t1 |
t2 |
kg |
NPK-Nr. | ||
|
MMR50-40U E |
50 |
40 |
200 |
7.0 |
7.0 |
77 |
74 |
7.8 |
- |
||
|
MMR80-40U E |
80 |
40 |
200 |
7.0 |
7.0 |
84 |
74 |
13.5 |
- |
||
|
MMR80-50U E |
80 |
50 |
110 |
7.0 |
7.0 |
84 |
77 |
5.4 |
- |
||
|
MMR100-40U E |
100 |
40 |
150 |
7.2 |
7.0 |
88 |
74 |
14.0 |
- |
||
|
MMR100-50U E |
100 |
50 |
150 |
7.2 |
7.0 |
88 |
77 |
7.6 |
- |
||
|
MMR100-80U E |
100 |
80 |
90 |
7.2 |
7.0 |
88 |
84 |
8.1 |
226.212 |
||
|
MMR125-80U E |
125 |
80 |
140 |
7.5 |
7.0 |
91 |
84 |
9.9 |
226.213 |
||
|
MMR125-100U E |
125 |
100 |
100 |
7.5 |
7.2 |
91 |
88 |
9.8 |
226.233 |
||
|
MMR150-80U E |
150 |
80 |
190 |
7.8 |
7.0 |
94 |
84 |
12.3 |
226.214 |
||
|
MMR150-100U E |
150 |
100 |
150 |
7.8 |
7.2 |
94 |
88 |
13.4 |
226.234 |
||
|
MMR150-125U E |
150 |
125 |
100 |
7.8 |
7.5 |
94 |
91 |
12.6 |
226.254 |
||
|
MMR200-80U E |
200 |
80 |
280 |
8.4 |
7.0 |
100 |
84 |
43.1 |
- |
||
|
MMR200-100U E |
200 |
100 |
250 |
8.4 |
7.2 |
100 |
88 |
18.3 |
226.235 |
||
|
MMR200-125U E |
200 |
125 |
200 |
8.4 |
7.5 |
100 |
91 |
17.5 |
226.255 |
||
|
MMR200-150U E |
200 |
150 |
150 |
8.4 |
7.8 |
100 |
94 |
17.8 |
226.275 |
||
|
MMR250-80U E |
250 |
80 |
300 |
9.0 |
7.0 |
106 |
84 |
33.0 |
- |
||
|
MMR250-100U E |
200 |
100 |
300 |
9.0 |
7.2 |
106 |
88 |
29.0 |
- |
||
|
MMR250-125U E |
250 |
125 |
300 |
9.0 |
7.5 |
106 |
91 |
26.5 |
- |
||
|
MMR250-150U E |
250 |
150 |
250 |
9.0 |
7.8 |
106 |
94 |
28.0 |
- |
||
|
MMR250-200U E |
250 |
200 |
150 |
9.0 |
8.4 |
106 |
100 |
30.2 |
- |
||
|
MMR300-80U E |
300 |
80 |
300 |
9.6 |
7.0 |
110 |
84 |
38.9 |
- |
||
|
MMR300-100U E |
300 |
100 |
275 |
9.6 |
7.2 |
110 |
88 |
55.1 |
- |
||
|
MMR300-150U E |
300 |
150 |
350 |
9.6 |
7.8 |
110 |
94 |
41.0 |
- |
||
|
MMR300-200U E |
300 |
200 |
250 |
9.6 |
8.4 |
110 |
100 |
37.8 |
226.317 |
||
|
MMR300-250U E |
300 |
250 |
150 |
9.6 |
9.0 |
110 |
106 |
36.7 |
- |
||
|
MMR350-150U E |
350 |
150 |
500 |
10.2 |
7.8 |
113 |
94 |
78.0 |
- |
||
|
MMR350-200U E |
350 |
200 |
360 |
10.2 |
8.4 |
113 |
100 |
48.0 |
- |
||
|
MMR350-250U E |
350 |
250 |
260 |
10.2 |
9.0 |
113 |
106 |
47.0 |
- |
||
|
MMR350-300U E |
350 |
300 |
160 |
10.2 |
9.6 |
113 |
110 |
45.0 |
- |
||
|
MMR400-200U E |
400 |
200 |
400 |
10.8 |
8.4 |
116 |
100 |
79.9 |
- |
||
|
MMR400-250U E |
400 |
250 |
360 |
10.8 |
9.0 |
116 |
106 |
73.5 |
- |
||
|
MMR400-300U E |
400 |
300 |
260 |
10.8 |
9.6 |
116 |
110 |
68.0 |
- |
||
|
MMR400-350U E |
400 |
350 |
160 |
10.8 |
10.2 |
116 |
113 |
70.0 |
- |
Alle Masse in mm - Änderungen vorbehalten
