Wasser

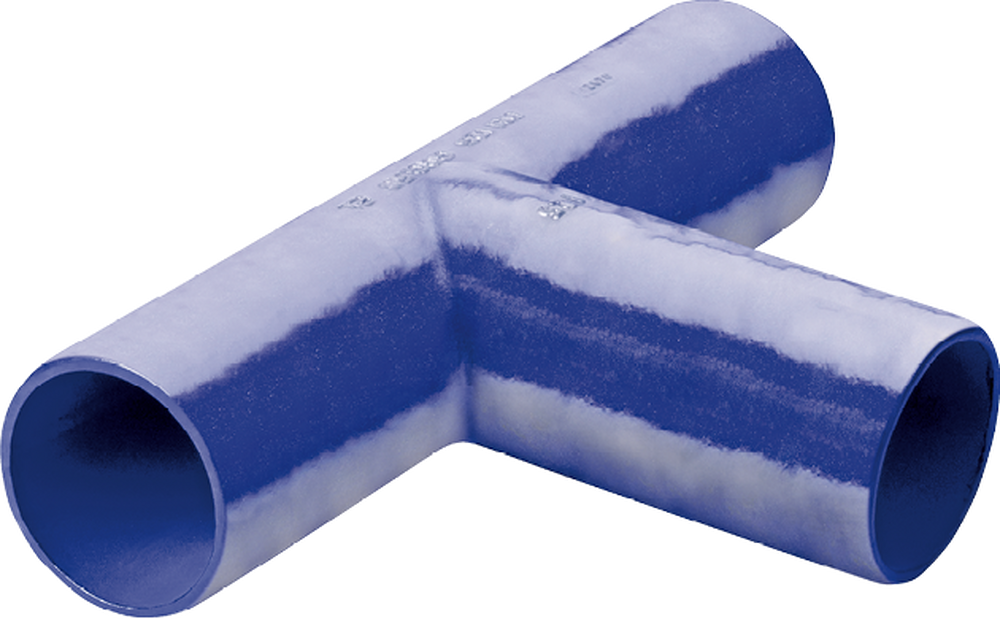

Spitzend-T mit 3 Stutzen
Typ IT
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN1 |
DN2 |
L |
l |
e1 |
e2 |
kg |
NPK-Nr. | |||
|
IT80-40E |
80 |
40 |
540 |
270 |
7.0 |
7.0 |
12.0 |
- |
|||
|
IT80-50E |
80 |
50 |
540 |
270 |
7.0 |
7.0 |
12.5 |
- |
|||
|
IT80-80E |
80 |
80 |
540 |
270 |
7.0 |
7.0 |
13.0 |
234.411 |
|||
|
IT100-40E |
100 |
40 |
550 |
275 |
7.2 |
7.0 |
12.0 |
- |
|||
|
IT100-50E |
100 |
50 |
550 |
275 |
7.2 |
7.0 |
13.0 |
- |
|||
|
IT100-80E |
100 |
80 |
550 |
275 |
7.2 |
7.0 |
14.5 |
234.472 |
|||
|
IT100-100E |
100 |
100 |
550 |
275 |
7.2 |
7.2 |
15.0 |
234.412 |
|||
|
IT125-40E |
125 |
40 |
600 |
300 |
7.5 |
7.0 |
17.0 |
234.433 |
|||
|
IT125-50E |
125 |
50 |
600 |
300 |
7.5 |
7.0 |
19.0 |
234.453 |
|||
|
IT125-80E |
125 |
80 |
600 |
300 |
7.5 |
7.0 |
20.0 |
234.473 |
|||
|
IT125-100E |
125 |
100 |
600 |
300 |
7.5 |
7.2 |
21.0 |
234.513 |
|||
|
IT125-125E |
125 |
125 |
600 |
300 |
7.5 |
7.5 |
24.0 |
234.413 |
|||
|
IT150-40E |
150 |
40 |
620 |
310 |
7.8 |
7.0 |
21.5 |
- |
|||
|
IT150-50E |
150 |
50 |
620 |
310 |
7.8 |
7.0 |
22.5 |
- |
|||
|
IT150-80E |
150 |
80 |
620 |
310 |
7.8 |
7.0 |
23.0 |
234.474 |
|||
|
IT150-100E |
150 |
100 |
620 |
310 |
7.8 |
7.2 |
24.5 |
234.514 |
|||
|
IT150-125E |
150 |
125 |
620 |
310 |
7.8 |
7.5 |
25.0 |
234.534 |
|||
|
IT150-150E |
150 |
150 |
620 |
310 |
7.8 |
7.8 |
26.7 |
234.414 |
|||
|
IT200-80E |
200 |
80 |
650 |
325 |
8.4 |
7.0 |
34.0 |
234.475 |
|||
|
IT200-100E |
200 |
100 |
650 |
325 |
8.4 |
7.2 |
35.0 |
234.515 |
|||
|
IT200-125E |
200 |
125 |
650 |
325 |
8.4 |
7.8 |
36.0 |
234.535 |
|||
|
IT200-150E |
200 |
150 |
650 |
325 |
8.4 |
8.4 |
36.5 |
234.555 |
|||
|
IT200-200E |
200 |
200 |
650 |
325 |
8.4 |
9.0 |
38.5 |
234.415 |
|||
|
IT250-80E |
250 |
80 |
810 |
405 |
9 |
7.0 |
45.0 |
- |
|||
|
IT250-100E |
250 |
100 |
810 |
405 |
9 |
7.2 |
47.0 |
234.516 |
|||
|
IT250-150E |
250 |
150 |
810 |
405 |
9 |
7.8 |
48.5 |
234.556 |
|||
|
IT250-200E |
250 |
200 |
810 |
405 |
9 |
8.4 |
51.5 |
234.576 |
|||
|
IT250-250E |
250 |
250 |
810 |
405 |
9 |
9.0 |
55.0 |
234.416 |
|||
|
IT300-80E |
300 |
80 |
870 |
435 |
9.6 |
7.0 |
64.5 |
- |
|||
|
IT300-100E |
300 |
100 |
870 |
435 |
9.6 |
7.2 |
68.0 |
234.517 |
|||
|
IT300-150E |
300 |
150 |
870 |
435 |
9.6 |
7.8 |
70.0 |
234.557 |
|||
|
IT300-200E |
300 |
200 |
870 |
435 |
9.6 |
8.4 |
72.0 |
234.577 |
|||
|
IT300-250E |
300 |
250 |
870 |
435 |
9.6 |
8.4 |
74.0 |
234.617 |
|||
|
IT300-300E |
300 |
300 |
870 |
435 |
9.6 |
9.6 |
77.0 |
234.417 |
Alle Masse in mm - Änderungen vorbehalten
