Wasser
Steckmuffen Novo-Sit

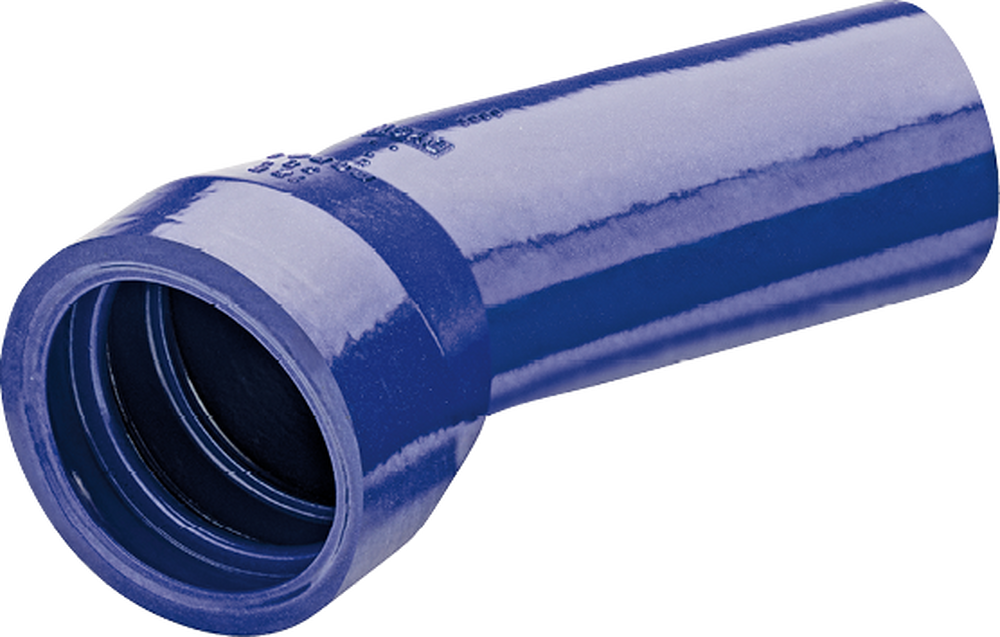

Bogen 22° 1 Muffe
Bogen 22° 1 Muffe
Typ MK
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
L |
Lu |
t |
e |
kg |
NPK-Nr. | DS (2D) | SA (2D) | VA (2D) |
|
MK80 22N E |
80 |
248 |
38 |
119 |
7.0 |
9.3 |
231.171 |
|||
|
MK100 22N E |
100 |
253 |
43 |
123 |
7.2 |
11.1 |
231.172 |
|
|
|
|
MK125 22N E |
125 |
274 |
49 |
126 |
7.5 |
16.9 |
231.173 |
|||
|
MK150 22N E |
150 |
299 |
55 |
129 |
7.8 |
20.5 |
231.174 |
|||
|
MK200 22N E |
200 |
331 |
66 |
138 |
8.4 |
32.3 |
231.175 |
|||
|
MK250 22N E |
250 |
260 |
75 |
143 |
9.0 |
42.6 |
231.176 |
|||
|
MK300 22N E |
300 |
265 |
90 |
152 |
9.6 |
55.9 |
231.177 |
|
|
|
|
MK350 22N E |
350 |
270 |
100 |
154 |
10.2 |
57.7 |
- |
|||
|
MK400 22N E |
400 |
278 |
110 |
154 |
10.8 |
85.0 |
231.178 |
|
|
|
|
MK500 22N E |
500 |
300 |
135 |
168 |
12.0 |
109.0 |
- |
|
|
|
|
MK600 22N E |
600 |
357 |
155 |
168 |
13.2 |
179.6 |
- |
|
|
|
|
MK700 22N E |
700 |
420 |
190 |
205 |
14.4 |
365.5 |
- |
|
|
|
|
MK800 22N E |
800 |
455 |
205 |
217 |
15.6 |
496.6 |
- |
Alle Masse in mm - Änderungen vorbehalten
