Wasser
Steckmuffen Novo-Sit

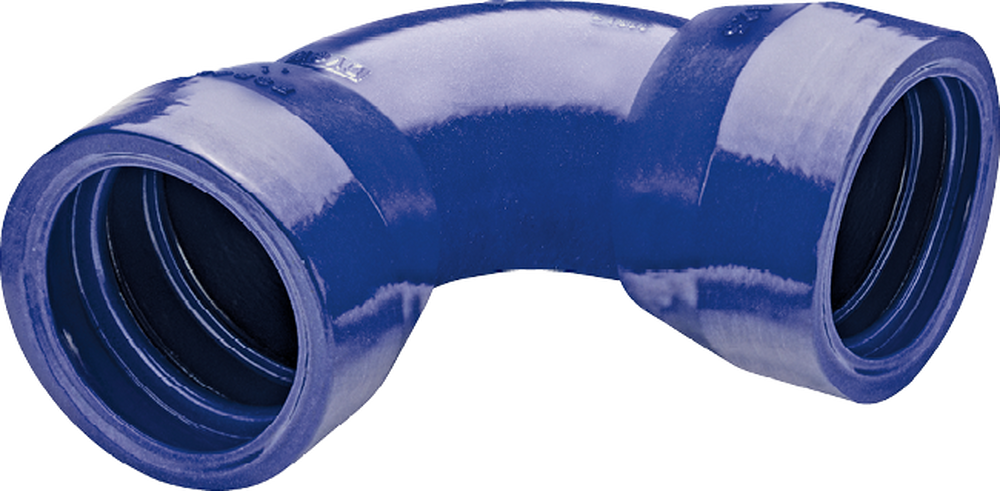

Bogen 90° 2 Muffen
Bogen 90° 2 Muffen
Typ MMQ
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
Lu |
t |
e |
kg |
NPK-Nr. | DS (2D) | SA (2D) | VA (2D) | |
|
MMQ80 90N E |
80 |
100 |
119 |
7.0 |
10.9 |
231.311 |
||||
|
MMQ100 90N E |
100 |
125 |
123 |
7.2 |
13.8 |
231.312 |
|
|
|
|
|
MMQ125 90N E |
125 |
150 |
126 |
7.5 |
19.8 |
231.313 |
||||
|
MMQ150 90N E |
150 |
175 |
129 |
7.8 |
24.7 |
231.314 |
||||
|
MMQ200 90N E |
200 |
225 |
138 |
8.4 |
38.6 |
231.315 |
||||
|
MMQ250 90N E |
250 |
280 |
143 |
9.0 |
62.5 |
231.316 |
||||
|
MMQ300 90N E |
300 |
330 |
152 |
9.6 |
83.8 |
231.317 |
|
|
|
|
|
MMQ350 90N E |
350 |
410 |
154 |
10.2 |
116.2 |
- |
||||
|
MMQ400 90N E |
400 |
430 |
154 |
10.8 |
144.6 |
231.318 |
|
|
|
|
|
MMQ500 90N E |
500 |
550 |
168 |
12.0 |
238.4 |
- |
|
|
|
|
|
MMQ600 90N E |
600 |
645 |
168 |
13.2 |
347.5 |
- |
|
|
|
|
|
MMQ700 90N E |
700 |
720 |
205 |
14.4 |
539.0 |
- |
||||
|
MMQ800 90N E |
800 |
800 |
217 |
15.6 |
723.2 |
- |
Alle Masse in mm - Änderungen vorbehalten
