Wasser

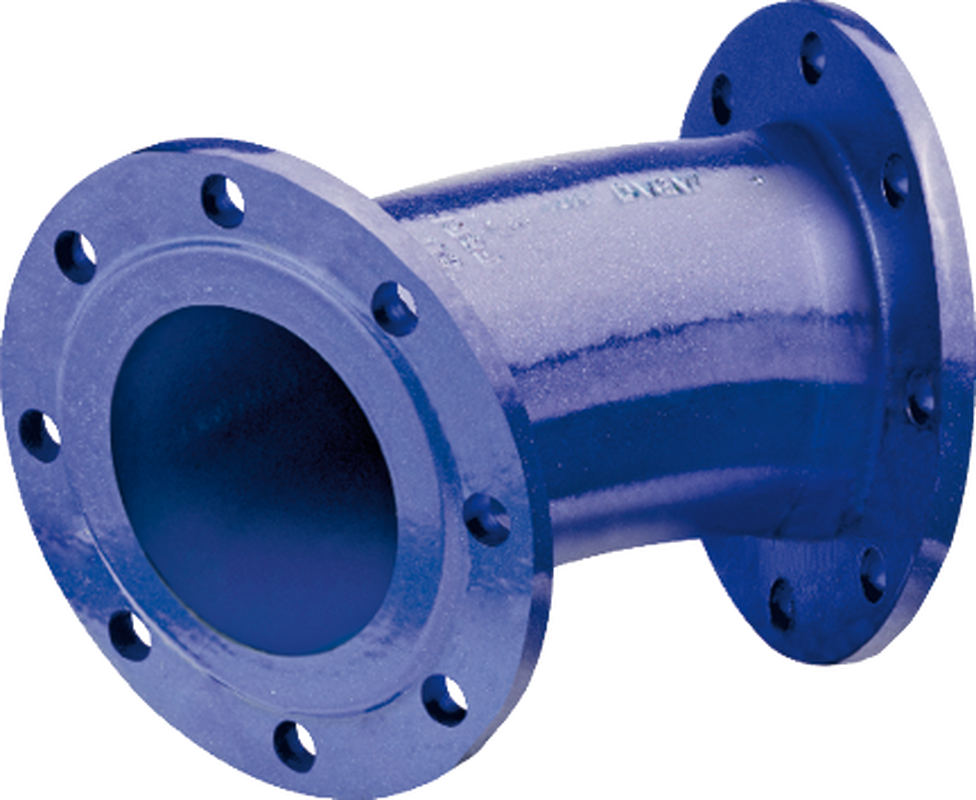

Bogen 45° 2 Flanschen
Typ FFK
PDF-Version
Download
Zum Warenkorb hinzufügen
Diese Seite teilen
|
Artikel-Nr. |
DN |
PN |
L |
e |
kg |
NPK-Nr. | DS (2D) | SA (2D) | VA (2D) | |
|
FFK80 45E |
80 |
10/16 |
130 |
7.0 |
10.3 |
242.421 |
|
|||
|
FFK100 45E |
100 |
10/16 |
140 |
7.2 |
12.6 |
242.422 |
|
|||
|
FFK125 45E |
125 |
10/16 |
150 |
7.5 |
17.5 |
242.423 |
|
|||
|
FFK150 45E |
150 |
10/16 |
160 |
7.8 |
21.6 |
242.424 |
|
|||
|
FFK200 45 10E |
200 |
10 |
180 |
8.4 |
32.4 |
242.525 |
|
|||
|
FFK200 45 16E |
200 |
16 |
180 |
8.4 |
32.4 |
242.625 |
|
|||
|
FFK250 45 10E |
250 |
10 |
350 |
9.0 |
60.9 |
242.526 |
|
|||
|
FFK250 45 16E |
250 |
16 |
350 |
9.0 |
60.9 |
242.626 |
|
|||
|
FFK300 45 10E |
300 |
10 |
400 |
9.6 |
90.2 |
242.527 |
|
|||
|
FFK300 45 16E |
300 |
16 |
400 |
9.6 |
90.2 |
242.627 |
|
|||
|
FFK350 45 10E |
350 |
10 |
298 |
10.2 |
96.1 |
- |
||||
|
FFK350 45 16E |
350 |
16 |
298 |
10.2 |
102.6 |
- |
||||
|
FFK400 45 10E |
400 |
10 |
324 |
10.8 |
117.2 |
242.528 |
||||
|
FFK400 45 16E |
400 |
16 |
324 |
10.8 |
129.1 |
242.628 |
||||
|
FFK500 45 10E |
500 |
10 |
375 |
12.0 |
185.8 |
- |
||||
|
FFK500 45 16E |
500 |
16 |
375 |
12.0 |
235.4 |
- |
||||
|
FFK600 45 10E |
600 |
10 |
426 |
13.2 |
288.0 |
- |
||||
|
FFK600 45 16E |
600 |
16 |
426 |
13.2 |
347.0 |
- |
||||
|
FFK700 45 10E |
700 |
10 |
478 |
14.4 |
489.0 |
- |
||||
|
FFK700 45 16E |
700 |
16 |
478 |
14.4 |
481.0 |
- |
||||
|
FFK800 45 10E |
800 |
10 |
529 |
15.6 |
403.0 |
- |
||||
|
FFK800 45 16E |
800 |
16 |
529 |
15.6 |
442.0 |
- |
Alle Masse in mm - Änderungen vorbehalten
